System Solutions

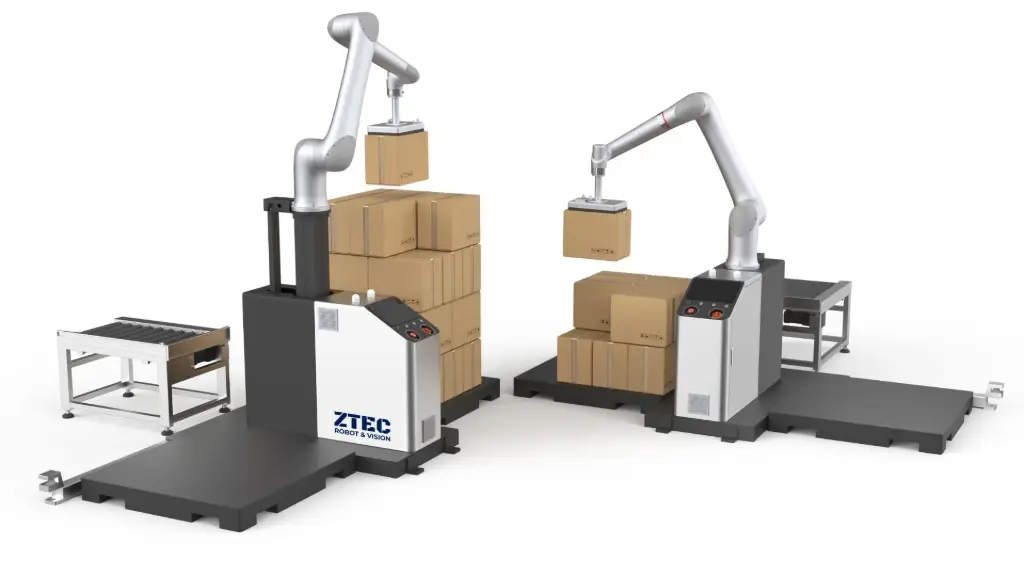

EasyPal 14 is a no code and no programmering palletizing solution that can palletize boxes, metal objects and more. It is easy to install or integrate into your production line and takes no time to start.

EasyPal 14L is a no code and no programmering palletizing solution with a lift that can palletize boxes, metal objects and more. It is easy to install or integrate into your production line and takes no time to start.

EasyPal 21L is a no code and no programmering palletizing solution with a lift that can palletize boxes, metal objects and more. It is easy to install or integrate into your production line and takes no time to start.

EasyPal 21 is a no code and no programmering palletizing solution that can palletize boxes, metal objects and more. It is easy to install or integrate into your production line and takes no time to start.

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 01
Two fixed tables for holding clamping tools

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 02
Motorized reversing 180° cycle table for holding clamping tools

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 03
2x horizontal rotary positioners in different payload classes (250, 500 and 1.000kg) incl. counter bearing unit

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 04
2-station horizontal rotary positioner in different payload classes (250, 500 and 1.000kg) and different center distances

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 05
2x 2-axis turn/tilt positioner in different payload classes (250, 500 and 1.000kg)

The OTC EASY ARC 01.01 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P402: Air-cooled
OTC robot torch, type RT-3500H+SSV: Air-cooled
OTC weld assy, type FD19-B6-RT35H-P4
Stable working table (work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.02 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P502L: Water-cooled
OTC robot torch, type RTW-5000H+SSV: Water-cooled
OTC weld assy, type FD19-B6-RTW50H-P5L
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.03 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P402: air-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
OTC robot torch, type RT-3500H+SSV: air-cooled
OTC weld assy, type FD19-B6-RT35H-P4
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.04 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P502L: Water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
OTC robot torch, type RTW-5000H+SSV: Water-cooled
OTC weld assy, type FD19-B6-RTW50H-P5L
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.01 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: Water-cooled
TIG robot torch, type WH400-W0+CAT2-XL: Water-cooled
TIG weld accessories: Without filler
Stable working table ( work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.02 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: water-cooled
TIG robot torch, type WH400PP-W0+CAT2-XL: water-cooled
TIG weld accessories: With filler
Stable working table (work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.03 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
TIG robot torch, type WH400-W0+CAT2-XL: water-cooled
TIG weld accessories: Without filler
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.04 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: Water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
TIG robot torch, type WH400PP-W0+CAT2-XL: Water-cooled
TIG weld accessories: With filler
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches
