Welding

Robot SET RMFD19-V166H from OTC-Daihen

Robot SET RMFD19-B6L (S2) from OTC-Daihen

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

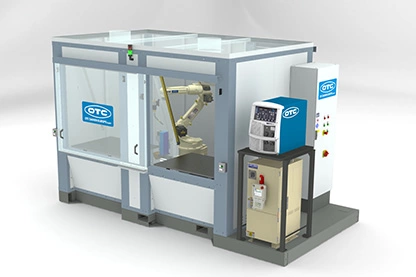

CUBE 01
Two fixed tables for holding clamping tools

The CM-0401-D wire feed unit is a component that has been specially developed for ARXIS welding power sources.

Wire feeders are used to supply filler metal to the weld joint and are essential for MIG/MAG and TIG cold wire welding. External wire feeder can provide significant advantages over internal wire feeders and are a popular choice for professional welders looking to improve the quality and efficiency of their welding process.

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

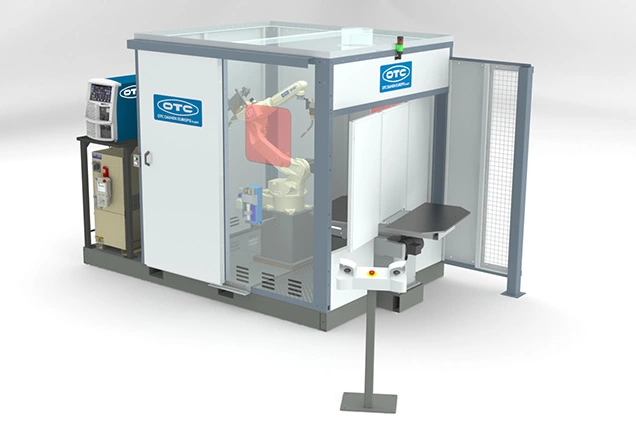

CUBE 02
Motorized reversing 180° cycle table for holding clamping tools

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

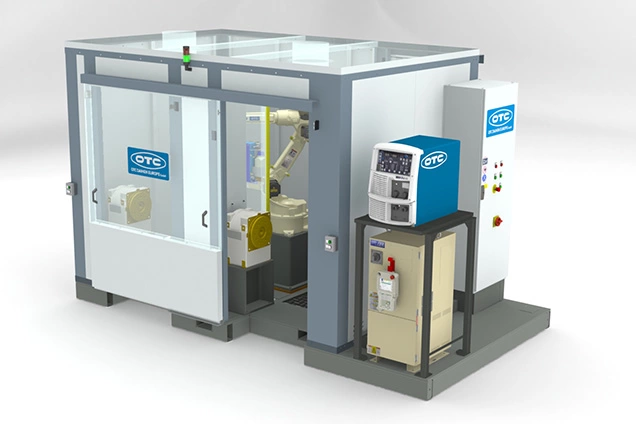

CUBE 03
2x horizontal rotary positioners in different payload classes (250, 500 and 1.000kg) incl. counter bearing unit

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

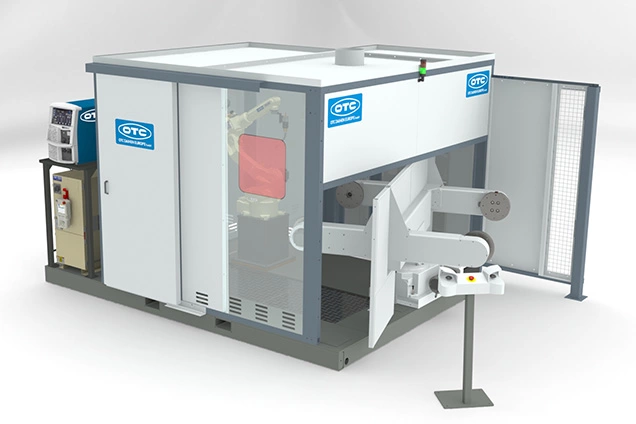

CUBE 04
2-station horizontal rotary positioner in different payload classes (250, 500 and 1.000kg) and different center distances

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

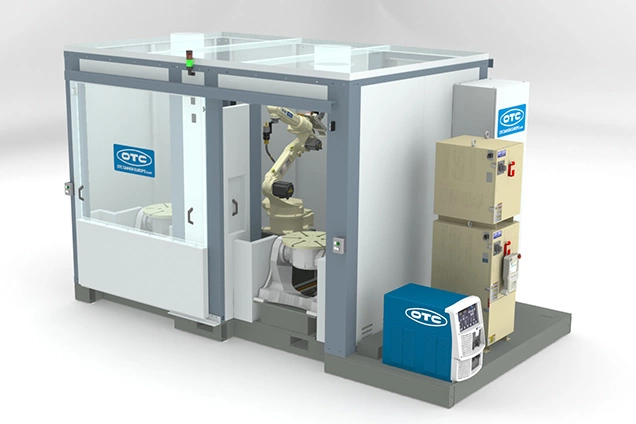

CUBE 05
2x 2-axis turn/tilt positioner in different payload classes (250, 500 and 1.000kg)

FD19-B6 Robot Base Module

• Simple and slim design only 145 kg weight
• Optimized payload capacity of 6 kg
• Advanced operational performance by high accurate positional repeatability of 0.08 mm
• Easy handling (Teach in)
• Extremely reliable
• Working range of R 1445 mm
• Incl. APS Function (Advanced Parameter Selection)
• Incl. IFC Function (Intuitive Function Control)

This kit incl.
116000009: Basic Robot Module RMFD19-B6
116003003: Transformer case & noise filter for FD19 (CE-KIT)
116007019: Teach Pendant 8m Cable for FD19
116072015: Control Cable 5m for B6, B6L, V8, V8L, V25(FD19)
214003002: Transformer 3kVA
116072003: Operation Box with 5m Cable for FD19
116006028: Printed Circuit Board Relay Unit for FD19 ( 1-32 IN/OUT)

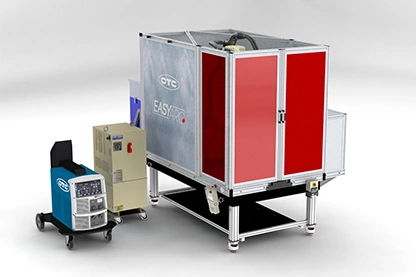

The OTC EASY ARC 01.01 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P402: Air-cooled
OTC robot torch, type RT-3500H+SSV: Air-cooled
OTC weld assy, type FD19-B6-RT35H-P4
Stable working table (work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.02 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P502L: Water-cooled
OTC robot torch, type RTW-5000H+SSV: Water-cooled
OTC weld assy, type FD19-B6-RTW50H-P5L
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.03 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P402: air-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
OTC robot torch, type RT-3500H+SSV: air-cooled
OTC weld assy, type FD19-B6-RT35H-P4
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.04 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P502L: Water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
OTC robot torch, type RTW-5000H+SSV: Water-cooled
OTC weld assy, type FD19-B6-RTW50H-P5L
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.01 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: Water-cooled
TIG robot torch, type WH400-W0+CAT2-XL: Water-cooled
TIG weld accessories: Without filler
Stable working table ( work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.02 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: water-cooled
TIG robot torch, type WH400PP-W0+CAT2-XL: water-cooled
TIG weld accessories: With filler
Stable working table (work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.03 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
TIG robot torch, type WH400-W0+CAT2-XL: water-cooled
TIG weld accessories: Without filler
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.04 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: Water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
TIG robot torch, type WH400PP-W0+CAT2-XL: Water-cooled
TIG weld accessories: With filler
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

FD19 B6L Robot Base Module
• Simple and slim design only 278 kg weight
• Optimized payload capacity of 6 kg
• Advanced operational performance by high accurate positional repeatability of 0.08 mm
• Ideal for offline teaching
• Extremely reliable
• Large working range of R 2008 mm
• Incl. APS Function (Advanced Parameter Selection)

The Basic Robot Module include:
① Robot Manipulator (NB6L2-CEFC(S2))
② Control Unit FD19 (FD19-CL0000)
③ Teach Pendand for FD19 (FD19TP-DSJNW)
④ Point Mark Assy (L7096C00)
⑤ Transformer case & noise filter for FD19 (CE-KIT)
⑥ Teach Pendant 8m Cable for FD19
⑦ Control Cable 5m for B6, B6L, V8, V8L, V25(FD19)
⑧ Transformer 3kVA
⑨ Operation Box with 5m Cable for FD19
⑩-1 Printed Circuit Board Relay Unit for FD19 ( 1-32 IN/OUT)

For different configuration of the SET, contact us.

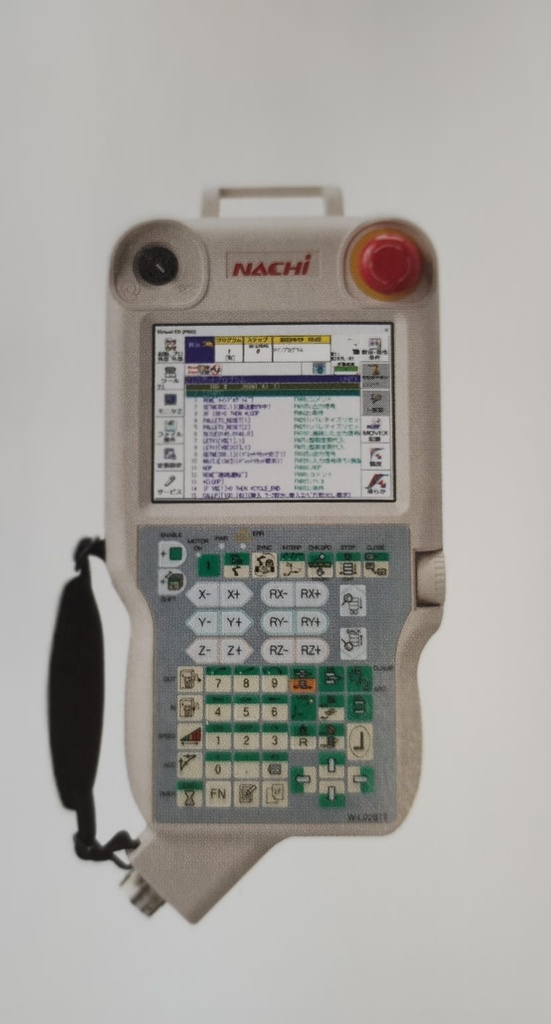

Teach Pendant for FD19 from OTC-Daihen
