Standardized Systems

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

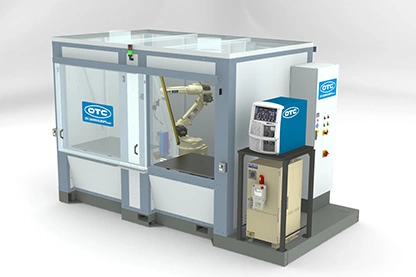

CUBE 01
Two fixed tables for holding clamping tools

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

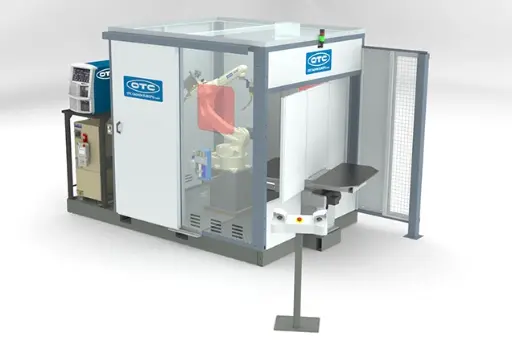

CUBE 02
Motorized reversing 180° cycle table for holding clamping tools

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

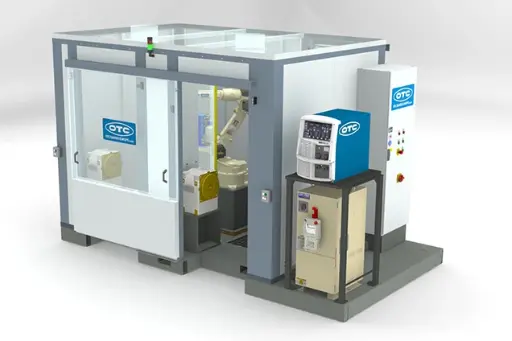

CUBE 03
2x horizontal rotary positioners in different payload classes (250, 500 and 1.000kg) incl. counter bearing unit

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

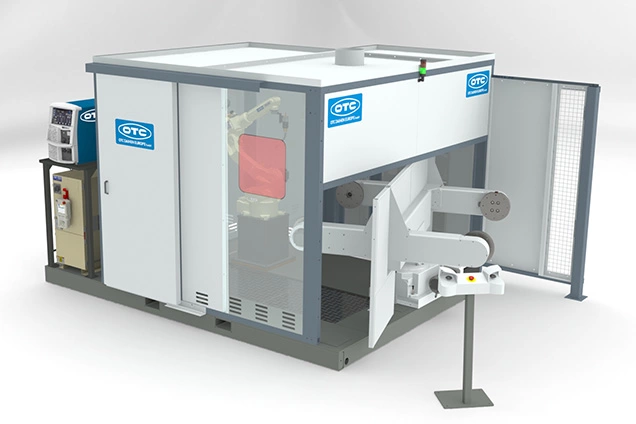

CUBE 04
2-station horizontal rotary positioner in different payload classes (250, 500 and 1.000kg) and different center distances

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

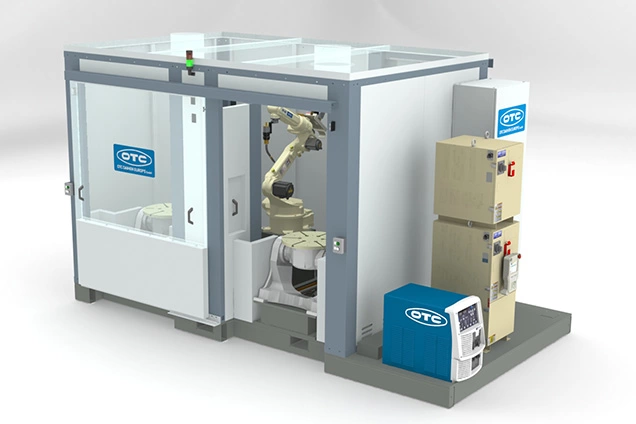

CUBE 05
2x 2-axis turn/tilt positioner in different payload classes (250, 500 and 1.000kg)

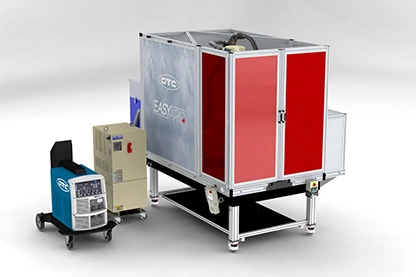

The OTC EASY ARC 01.01 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P402: Air-cooled
OTC robot torch, type RT-3500H+SSV: Air-cooled
OTC weld assy, type FD19-B6-RT35H-P4
Stable working table (work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.02 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P502L: Water-cooled
OTC robot torch, type RTW-5000H+SSV: Water-cooled
OTC weld assy, type FD19-B6-RTW50H-P5L
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.03 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P402: air-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
OTC robot torch, type RT-3500H+SSV: air-cooled
OTC weld assy, type FD19-B6-RT35H-P4
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.04 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P502L: Water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
OTC robot torch, type RTW-5000H+SSV: Water-cooled
OTC weld assy, type FD19-B6-RTW50H-P5L
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.01 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: Water-cooled
TIG robot torch, type WH400-W0+CAT2-XL: Water-cooled
TIG weld accessories: Without filler
Stable working table ( work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.02 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: water-cooled
TIG robot torch, type WH400PP-W0+CAT2-XL: water-cooled
TIG weld accessories: With filler
Stable working table (work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.03 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
TIG robot torch, type WH400-W0+CAT2-XL: water-cooled
TIG weld accessories: Without filler
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.04 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: Water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
TIG robot torch, type WH400PP-W0+CAT2-XL: Water-cooled
TIG weld accessories: With filler
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches
