MZ-series
6-Axis robots MZ Series
Thanks to high tracking speeds, these industrial robots operate with extreme productivity. Their high repeatability allows for precise handling and accurate positioning of various components during the loading/unloading of machine tools, working with drills, end mills, deburring tools, and in product packaging.
Technical Details MZ Line-Up:
- 1 to 70 kg payload
- 350 to 2100 mm max. reach
- All the way down to 0,015 mm repeatability
EZ-series
Pick & Place Robot EZ
Space-saving design thanks to overhead drive with vertical movement of the first axis. Requires no floor space. Highly dynamic axis movements ensure productive and efficient assembly and installation in electrical and electronics manufacturing. Easy and collision-free programming is enabled by internal cable and hose routing, along with hollow wrists
Technical Details EZ Line-Up
- 4-Axis / 6-Axis Version
- 2 to 3 kg payload
- Up to 550 mm reach
- Up to 0,014 mm repeatability
LP-series
High Speed Palletizing with the LP Series
The LP series is specialized for palletizing. With large, fast, yet precise movements, the LP210 can stack products such as cardboard boxes, bags, and sacks containing food, toys, and chemicals onto pallets. Packed with palletizing features, the LP series can handle a wide variety of stacking patterns.
Technical Details
- 130-210 kg payload
- 3210 mm reach
SRA-series
Heavy Duty Welding Robot SRA
Number 1 in the Asian automotive industry. Designed for heavy spot welding guns and equipped for seam welding. Also highly suitable for transporting large components, such as in vehicle construction. Reliable and robust under harsh conditions and in demanding continuous operation. Offers a wide product range with numerous options and functional variations.
Technical Details:
80 to 300 kg payload
1634 to 3000 mm max. reach
MC-series
MC-Series | Heavy Loader Palletizing Robot
This robot has sufficient lifting power for tasks such as loading and stacking beverages, bricks, concrete, and other heavy goods.
Technical Details:
5-6 Axis
470-500kg payload
2771 - 3756 mm reach
MC-Series | Heavy Loader Series
The MC series has ushered in a new era in the robotics industry. This part of the series is designed to lift items weighing up to 1000kg. Heavy lifting industries, such as the automotive, metal, and steel industries, are strengthened by this model.
With its internal cable routing, this model ensures a long lifespan in operation"
Technical Details: MC1000DL
- 6 Axis
- 1000 kg payload
- 3972 mm reach
Technical Details: MC600
- 6 Axis
- 600 kg payload
- 2890 mm reach
MC-Series| Kompakt, Multifunktionel Robot
Dust-proof and moisture-resistant, combined with excellent performance and a complete range of features to handle various applications, make this robot ideal for many production environments.
Technical Details:
- 6 axis
- 10-70 kg payload
- 1400 - 2050 mm reach
CZ-series
Collaborative Robot CZ
All-round safety and seamless collaboration between humans and machines. Touch- and pressure-sensitive in all slender arms and joints. Easy programming by manually moving to desired positions. Perfectly suited for assembly and order picking. Efficient due to its safe design. Operates without the need for safety barriers or external safety devices.
Technical Details:
CZ10 – 10 kg payload
Up to 1300 mm reach
Protection Class: IP54
Certified with: ISO 10218-1
Controller

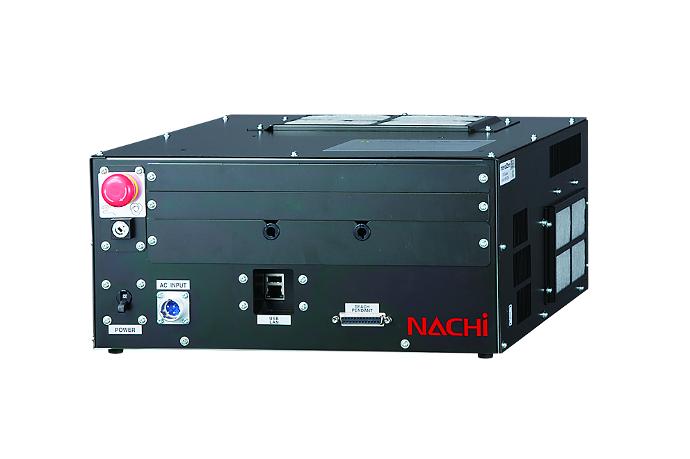

Controller CFDs (MZ-EC-EZ SERIES)
We introduce the intelligent robot controller CFDs for robust applications with Nachi robots. Delightfully intuitive, safe, and easy to use. Program and upload from FD on Desk III software or create your own programs effortlessly with the accompanying new FD19 teach pendant or the new Tablet 10.1.
Controller Options
- Extra axis: 2 possible
- Fieldbus: all
- Maximum programs: 9999
- Digital I/O: Maximum 64/64 points
- Vision Sensor: NV-Pro
- IP54 available as an option
Technical Details
- Controllable Axis: 6 (maks. 8)
- External dimensions (mm): 310(W)x250(D)x160(H)
FD Controller FD18
Controller FD18 to Nachi Industrial Robots*
Technical Deatils
- Controllable axes: 6 (Max. 8)
- External dimensions (mm): 300(W) x 600(D) x 1050(H)
- Max. I/O: 2048
- Maximum programs: 9999
- Position reader: Absolute encoder
- Protection Rating: IP54
- Power supply: three-phase 400 V AC
- Temperature/humidity: 0 to 40°C (50/60Hz), 20 to 85% (non-condensing)
FD Controller FD20
NEW 2024 Controller FD20 for Nachi industrial robots. Significant improvements in performance with cycle times, path control, and internal processing time.
Technical Details:
- Controllable axes: 6 (Max. 8)
- External dimensions (mm): 580(W) x 532(D) x 490(H)
- Max. I/O: 2048
- Maximum programs: 9999
- Position reader: Absolute encoder
- Protection Rating: IP54
- Soft-PLC - ISaGRAF Ver5
- Power supply: three-phase 400 V AC
- Temperature/humidity: 0 to 40°C (50/60Hz), 20 to 85% (non-condensing)
- North American UL - YES
- CSA - YES
