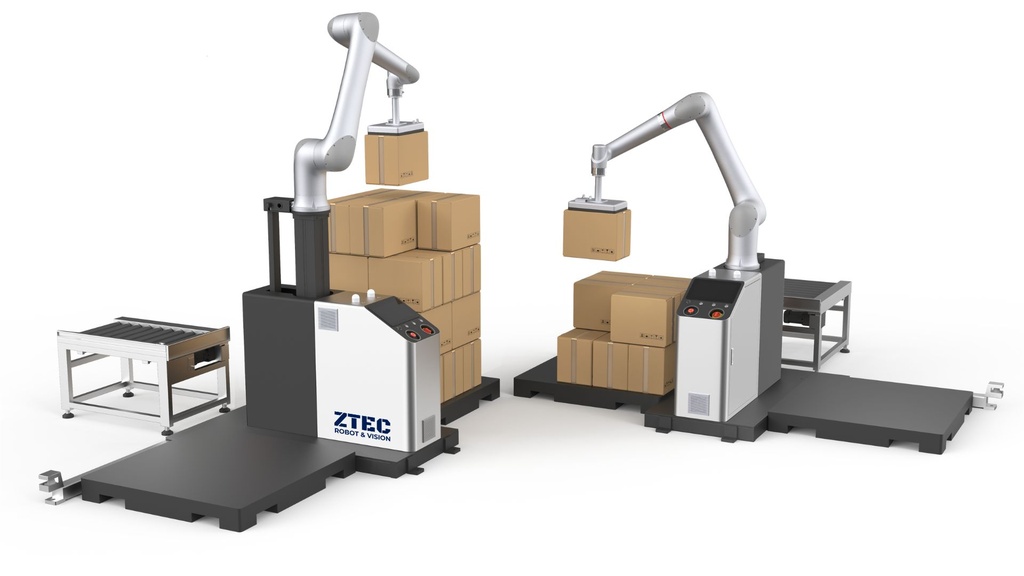

Cobot Palletizing Workstation - EasyPal 21
EasyPal 21 is a no code and no programmering palletizing solution that can palletize boxes, metal objects and more. It is easy to install or integrate into your production line and takes no time to start.
Just enter your pallet and product measurements, your wishes on cardboard liner, orientation, pattern and palletizing style; and you are good to go.

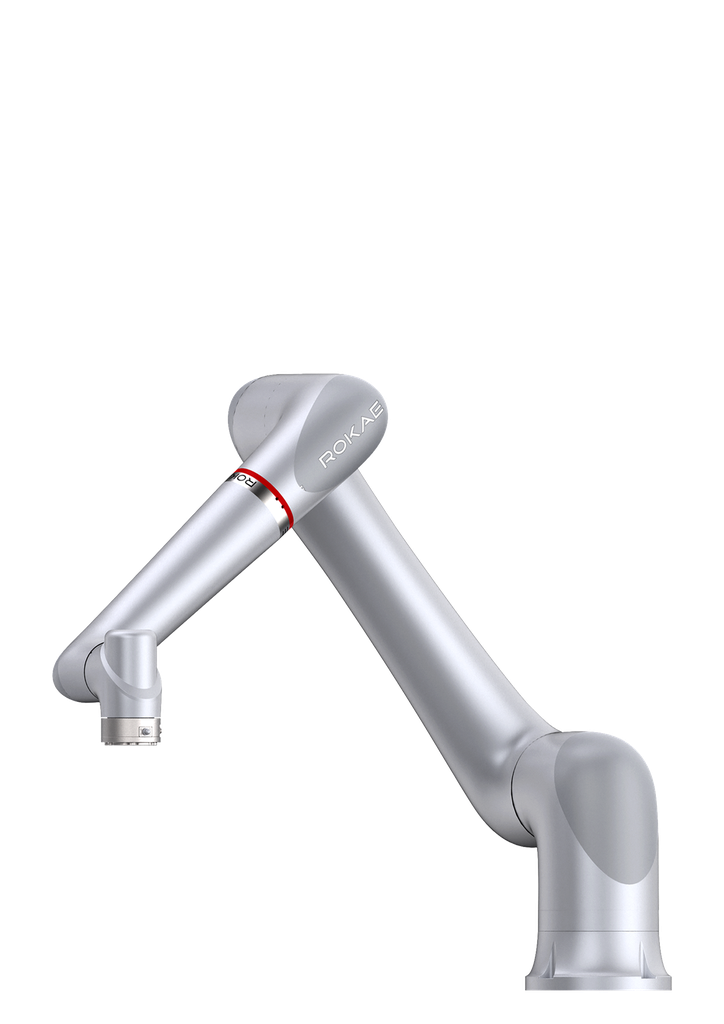

This model is equipped with a Rokae Cobot CR25-5 and a lift, which enables the robot to palletize a total weight of 25 kg (Gripper + object). With a standard ~3 kg gripper, you can palletize 21 kg with this cobot configuration.
Download the datasheet for the advantages and technical details of the solution.
Inkl. DAP
Installation
Standard: 1300 mm x 1667 mm
With Safety Fence: Dependable on pallet size ....
Air Source: 0.5 Mpa - 0.8 Mpa, Air consumption: 400L/min
Power Source: AC 200-240V, 50Hz
Description

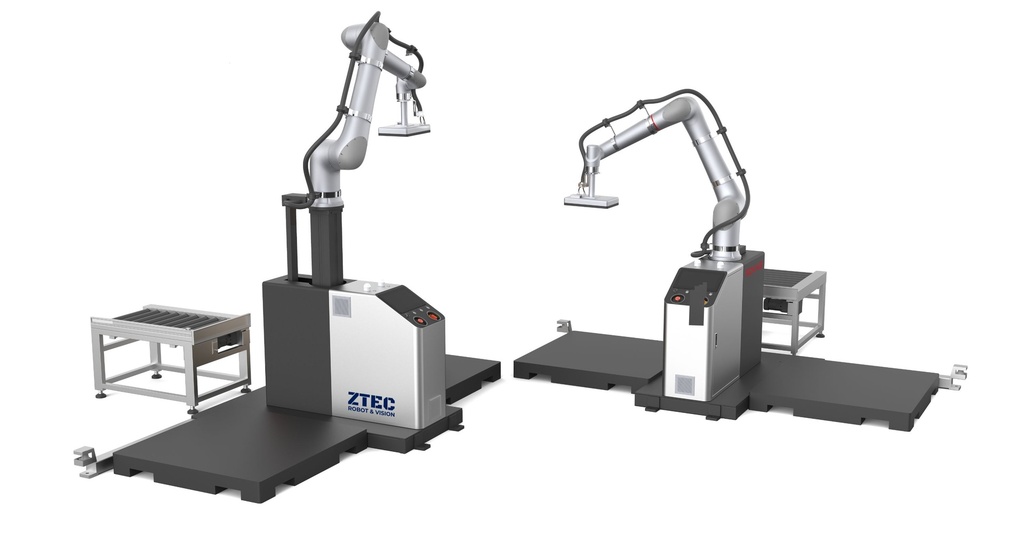

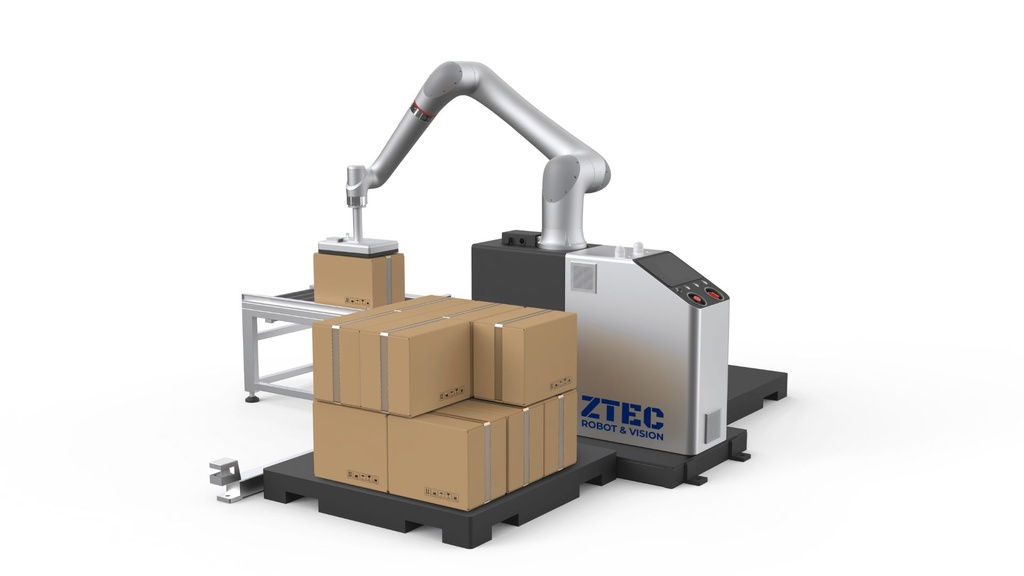

Easy Pal cobot workstation palletizes items from a conveyor belt onto two fixed pallet spots with high precision. Easy Pal is versatile and is easily installed in your production area. Relocate the workstation easily.
Included in Easy Pal is the Rokae Robot Assist software that allows anyone to quickly develop and implement new palletizing tasks and patterns via its intuitive and user-friendly interface.
The standard version of Easy Pal comes without protective shielding, giving it a minimal installation footprint. Easy Pal can also be upgraded to our 'High Speed' version, which includes safety fencing and safety equipment to ensure reduced speed when people are near the front of, or within, the working area.
Always Included
- Torque Force Sensor in the cobot
- Software - Robot Assist
- Double pallet stations.
- Status LED indicator in the front cabinet
Options
- High speed mode (requires safety fence, tunnel and scanner)
- Cardboard Liner
- Conveyer Belt
- Remote support
- service agreement
- Smart Barcode Reader
- Pneumatic pressure monitoring
