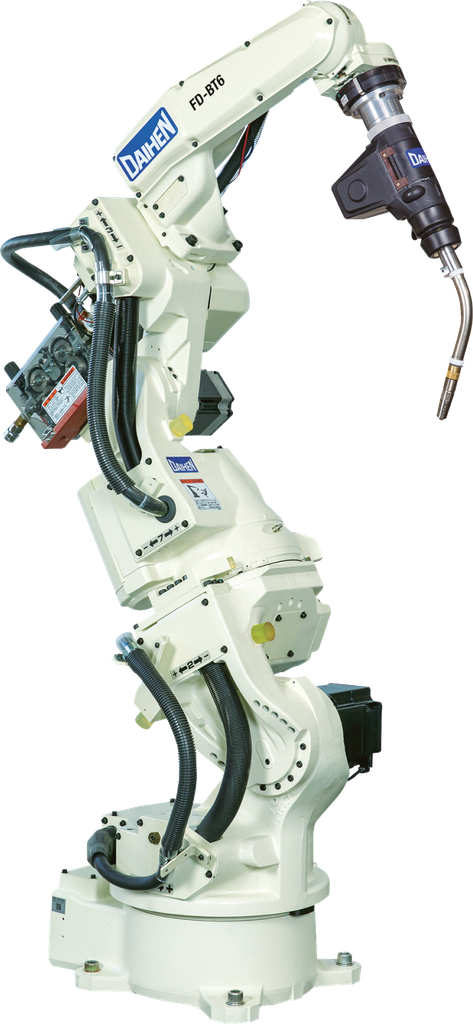

Robot Module type RMFD19-BT6
Robot Module type RMFD19-BT6 from OTC-Daihen
Documents
Welding Robot | FD19-BT6 |
Number of axes | 7 |
Working Range | R 1435 mm |
Max. payload capacity | 6 kg |
Additional payload capacity Axis 3 | 10 kg |
IP class upper arm | IP65 |
Installation type | F |
Weight | 183 kg |
Ambient temperature and humitidy | 0 ~ 45°C, 20 ~80 % RH (No condensation) |
Robot Module Package for FD19-BT6 | Type | Order No. | |
1 | Robot manipulator | NBT61-NEFC | 116000034 (part of Robot SET RMFD19-BT6) |
2 | Control unit | FD19-CVP0000 | 116000034 (part of Robot SET RMFD19-BT6) |
3 | Teach pendant | FD19TP-DSJNW | 116000034 (part of Robot SET RMFD19-BT6) |
4 | Point mark assy | L7096C00 | 116000034 (part of Robot SET RMFD19-BT6) |
5 | Transformer case & noise filter | Transformer case & noise filter for FD 19 (CE-KIT) | 116003003 |
6 | Teach pendant cable | Teach Pendant 8m Cable for FD19 | 116007019 |
7 | Control cable for robot | Control Cable 5m, 7 axis robot FD19 | 116072166 |
8 | Transformer | Transformer 3kVA | 214003002 |
9 | Operation box with cable | Operation Box with 5m Cable for FD19 | 116072003 |
10 | Printed circuit board relay unit | Printed Circuit Board Relay Unit for FD19 (1-32 IN/OUT) | 116006028 |
Optional components
Do your requirements not match the standard package? OTC has many variable options for the welding module. Contact us for your specific solution.
OTC industrial robots offer you flexible and scalable automation solutions of all kinds. In addition to industrial robots, the portfolio also includes special welding robots as well as positioners, software, sensor technology and the interface to process technology. The extensive range of accessories enhances our customized services.
The OTC welding robots cover a range from 6 kg to 210 kg, and with its 6 axis can support a broad variety of welding applications. Each model is customizable to support higher accuracy and higher payloads. All models can be extended with external axes for Synchromotion and different interfaces for communication.
This arc welding model FD19-BT6 has a working range of 1435 mm, a payload capacity of 6 kg, and a weight of 182 kg. It can be installed on floor.
