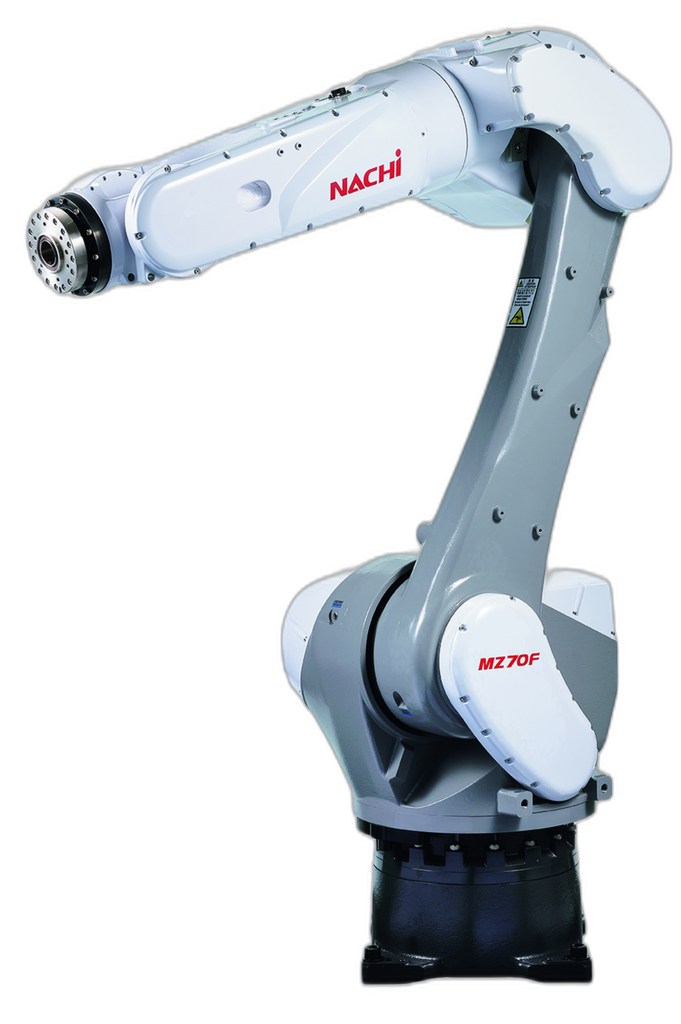

NACHI MZ70F
The Nachi MZ70F is one of the newly arrived additions to the MZ-Series. With a payload up to 70 kg, a reach of 2102 mm and protection rating IP67, it is a versatile choice for medium to heavy duty handling and palletizing. Standard offer includes robot monitoring unit and fieldbus ProfiNet.
Robot included with:
Robot Monitoring Unit
(RMU)
Comminucation Protocol of choice
Build in Valves: 4 (pcs)
I/O Board (32/32)
Controller type:
FD20 controller
Axis: 6 axis
Payload: 70 kg
Reach J1-J5: 2102 mm
Proteciton Rating: 67
Wire Harness : 10 (m)
TP cable: 8 (m)
CN10 Cable: 10 (m)
Application Cable : inc.
Zeroing Jig inc.
Brake : inc.
Release Kit: inc.
Fieldbus: yes
Arm | |
Reach | 2102 mm |
Payload | 70 kg |
Weight | 608 kg |
Performance | |
Repeatability | 0.06 mm |
Min. Operating Temperature | 0 °C |
Max. Operating Temperature | 45 °C |
Joint Movement | Range: ° | Max Speed : ° /s |
J1 | Will be updated | ±180 |
J2 | Will be updated | ±145 |
J3 | Will be updated | ±170 |
J4 | Will be updated | ±240 |
J5 | Will be updated | ±240 |
J6 | Will be updated | ±350 |
J7 | - | - |
Other Features | |
IP Classification | IP67 |
Mounting Direction | Floor inverted |
Control Box | |
Dimension | 300 x 6000 x 530 mm |
I/O Power Supply | Three Phase 200-230VAC, 50/60Hz |
IP Classification | IP54 |
Teach Panel | |
Dimension | 163 x 74,5 x 353 mm |
Weight | 0.9 kg |
Cable Length | 8 m |
IP Classification | IP65 |
The NACHI MZ70F is an outstanding solution for a wide range of applications in industrial automation. With a reach of 2102mm, a repeatability of 0.06mm and a payload of 70kg, it sets standards in terms of precision and versatility. This six-axis robot was developed to meet the high demands of modern manufacturing processes.
Versatile areas of application
The MZ70F is ideal for a wide range of applications, including machine tending, sealing, assembly and packaging. Its flexibility allows you to optimize your production processes while increasing efficiency.
With its hollow wrist, the MZ70F offers intelligent cable routing, which not only extends the service life of the cables, but also ensures a clean and tidy working environment. This feature helps to minimize maintenance times and also reduce the total cost of ownership.
Robust design
The MZ70F industrial robot from NACHI was developed for use in demanding conditions. With its IP67 protection class, it is protected against the ingress of dust and water, which underlines its reliability in various industrial environments.
Thanks to its advanced technology and sophisticated design, the MZ70F helps to optimize your production processes and strengthen competitiveness. Investing in this industrial robot not only means current efficiency gains, but also a solid foundation for future automation requirements.
