NACHI MZ50F

https://www.ztec.dk/web/image/product.template/25071/image_1920?unique=551d23b

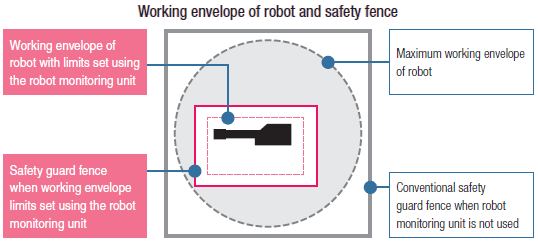

The MZ50F is a fast, lightweight industrial robot with a payload of 50 kg, and a reach of 2102 mm. For production safety, an RMU (Robot monitoring unit) is always included. The unit has functions such as operating range monitoring, angle monitoring, speed monitoring and stop monitoring. These can all be set from and communicated by the robot controller. The standard communication protocol is ProfiNet, but Ethernet/IP or EtherCat can be used alternatively. The MZ50F uses the Nachi FD20 controller.

The standard configuration of MZ50F consists of:
Wire Harness (m): 10
TP cable (m): 8
CN10 Cable (m): 10
Application Cable: inc.
Zeroing Jig: inc.
Build in Valves (pcs): 3
I/O Board (32/32): inc.
Brake Release Kit: inc.
RMU: -
Fieldbus * (Profinet Slave): inc.

If your project requires another configuration, contact us and we will find the right match and parts together with you.

0.00 € 0.0 EUR 0.00 € Tax Excluded

kr 0.00 Tax Excluded

Contact us for a quote!

  • Robot Type
  • Robot Payload
  • Robot Reach
  • IP Protection

This combination does not exist.

Robot Type: Articulated Robots
Robot Payload: 50 kg
Robot Reach: 2102 mm
IP Protection: IP67
