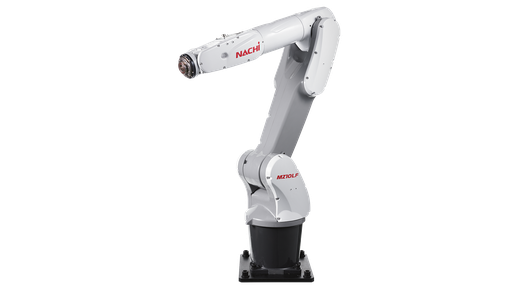

NACHI MZ10LF
The standard configuration of MZ10LF consists of:
Wire Harness (m): 5
TP cable (m): 4
CN10 Cable (m): 5
Application Cable: inc.
Zeroing Jig: -
Build in Valves (pcs): 3
I/O Board (32/32): inc.
Brake Release Kit: -

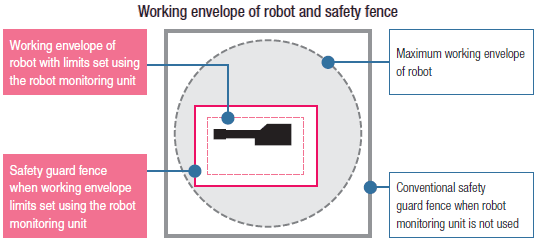

RMU: inc.
Fieldbus * (Profinet Slave): inc.
If your project requires another configuration, contact us and we will find the right match and parts together with you.
| Payload: 1 - 20 kg |
| Reach (robot): 1000 - 1499 mm |
| IP Protection: IP67 |
| Robot Type: Industrial |
Arm | |
Reach | 1,200 mm |
Payload | 10 kg |
Weight | 55k |
Performance | |
Repeatability | 0.025 mm |
Min. Operating Temperature | 0 °C |
Max. Operating Temperature | 45 °C |
Joint Movement | Range: ° | Max Speed : ° /s |
J1 | -170 till 170 | ±300 |
J2 | -135 till 80 | ±200 |
J3 | -136 till 270 | ±330 |
J4 | -190 till 190 | ±470 |
J5 | -120 till 120 | ±470 |
J6 | -360 till 360 | ±740 |
J7 | - | - |
Other Features | |
IP Classification | IP67 |
Mounting Direction | Floor, Inverted |
Control Box | |
Dimension | 310 x 250 x 160 mm |
I/O Power Supply | 1 Phase 200-230VAC, 50/60Hz |
IP Classification | IP20 |
Teach Panel | |
Dimension | 163 x 74,5 x 353 mm |
Weight | 0.9 |
Cable Length | 8 |
IP Classification | IP65 |
The NACHI MZ10LF is an outstanding solution for a wide range of applications in industrial automation. With a reach of 1202mm, a repeatability of 0.025mm and a payload of 10kg, it sets standards in terms of precision and versatility. This six-axis robot was developed to meet the high demands of modern manufacturing processes.
Versatile applications
The MZ10LF is ideal for a wide range of applications, including machine tending, screwing, assembly and packaging. Its flexibility allows you to optimize your production processes and increase efficiency at the same time.
With its hollow wrist, the MZ10LF offers intelligent cable routing that not only extends the life of the cables, but also ensures a clean and tidy working environment. This feature helps to minimize maintenance times and also reduces the total cost of ownership.
Robust Design
The MZ10LF industrial robot from NACHI was developed for use in demanding conditions. With its IP67 protection class, it is protected against the ingress of dust and water, which emphasises its reliability in various industrial environments.
Thanks to its advanced technology and sophisticated design, the MZ10LF helps to optimise your production processes and strengthen your competitiveness. Investing in this industrial robot not only means current efficiency gains, but also a solid foundation for future automation requirements.
The MZ10LF stands for precision, performance and reliability and is the ideal choice for companies that want to take their manufacturing processes to the next level.
