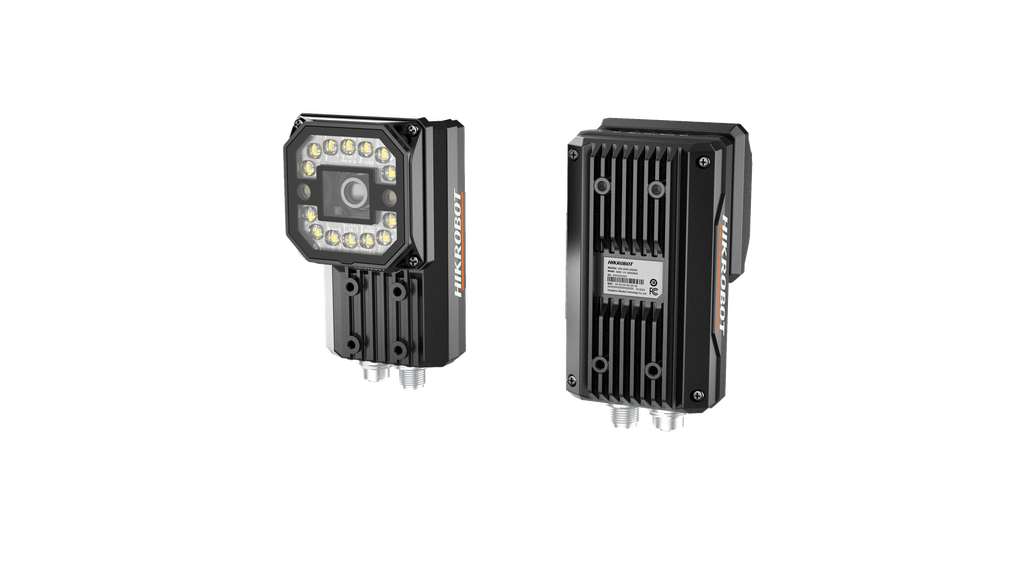

MV-ID5030M-12S-WBN
ID5030M- Smart Code Reader with 2048 × 1536 resolution, 90 codes/secmax reading speed, and 60 fps is the perfect choice for your automation project or production line. See the technical details below.
Max. frame rate: 60 fps
Max. reading speed: 90 codes/sec
Resolution: 2048 × 1536
Communication protocol: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP, UDP
Data interface: Gigabit Ethernet
Light source: White light by default. Red/blue/IR light is optional.
Dimension: 112.5 mm × 65.5 mm × 63.3 mm (4.4" × 2.6" × 2.5")
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Certification: CE-RoHS;UL
Symbologies: 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417.
Max. frame rate: 60 fps
Max. reading speed: 90 codes/sec
Resolution: 2048 × 1536
Communication protocol: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP, UDP
Data interface: Gigabit Ethernet
Light source: White light by default. Red/blue/IR light is optional.
Dimension: 112.5 mm × 65.5 mm × 63.3 mm (4.4" × 2.6" × 2.5")
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Certification: CE-RoHS;UL
Symbologies: 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417.
