MV-IDH3013B-05N-R1L

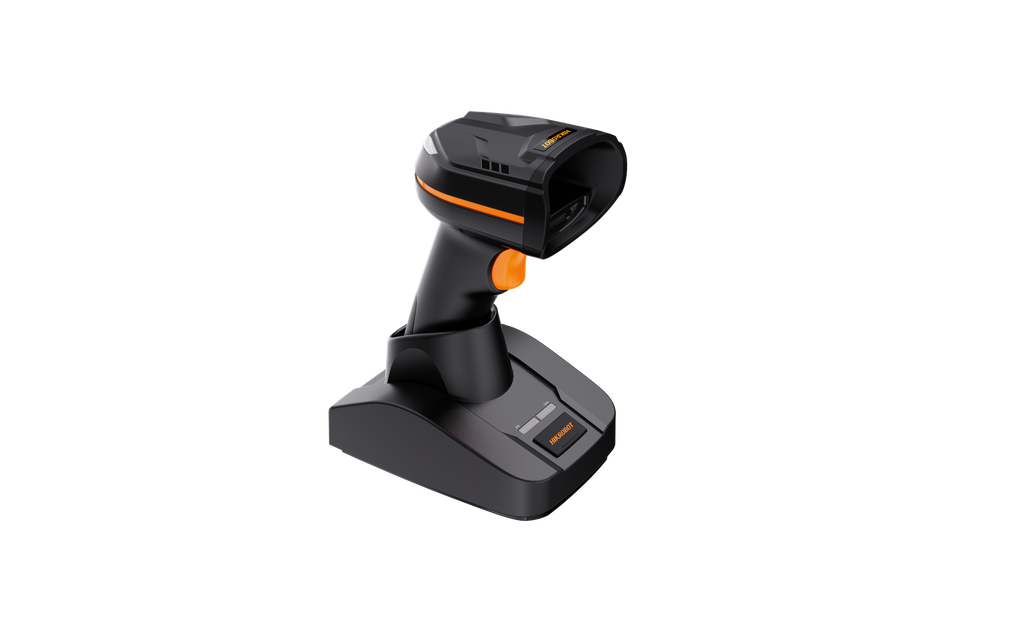

IDH3013 Handheld Scanner with 50 fps max. frame rate, 1280 × 1024 resolution, and Fast Ethernet, RS-232, DC terminal data interface. Ideal for your handheld QR or barcode needs in the warehouse or production.
Max. frame rate: 50 fps
Resolution: 1280 × 1024
Communication protocol: Wireless handheld code reader: SmartSDK Smart base: SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP
Data interface: Fast Ethernet, RS-232, DC terminal
Light source: Red LED

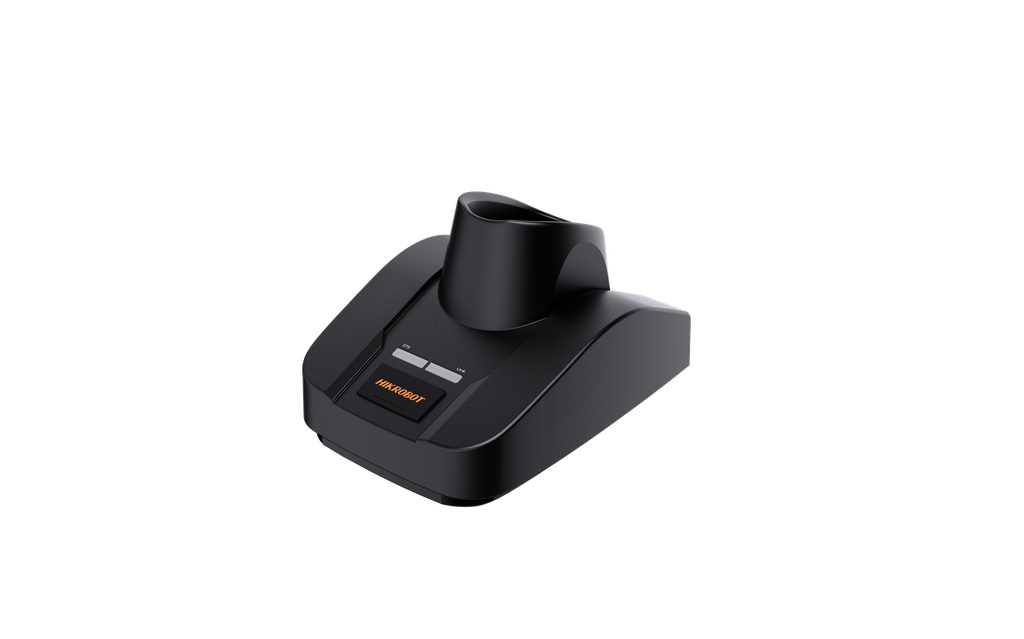

Dimension: Wireless handheld code reader: 74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1") Smart base: 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3")
Ingress protection: IP42
Min. accuracy: 3 mil
Battery : 3150 mAh, chargeable lithium battery
Charging time: 4 h
Symbologies: 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, and UPCE 2D codes: QR Code, Data Matrix
Related Accessory: \\MV-IBASE-01,MV-IBASE-02
Max. frame rate: 50 fps
Resolution: 1280 × 1024
Communication protocol: Wireless handheld code reader: SmartSDK Smart base: SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP
Data interface: Fast Ethernet, RS-232, DC terminal
Light source: Red LED
Dimension: Wireless handheld code reader: 74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1") Smart base: 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3")
Ingress protection: IP42
Min. accuracy: 3 mil
Battery : 3150 mAh, chargeable lithium battery
Charging time: 4 h
Symbologies: 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, and UPCE 2D codes: QR Code, Data Matrix
Related Accessory: \\MV-IBASE-01,MV-IBASE-02
