MV-ID5060M-25S-WBN-V2.0

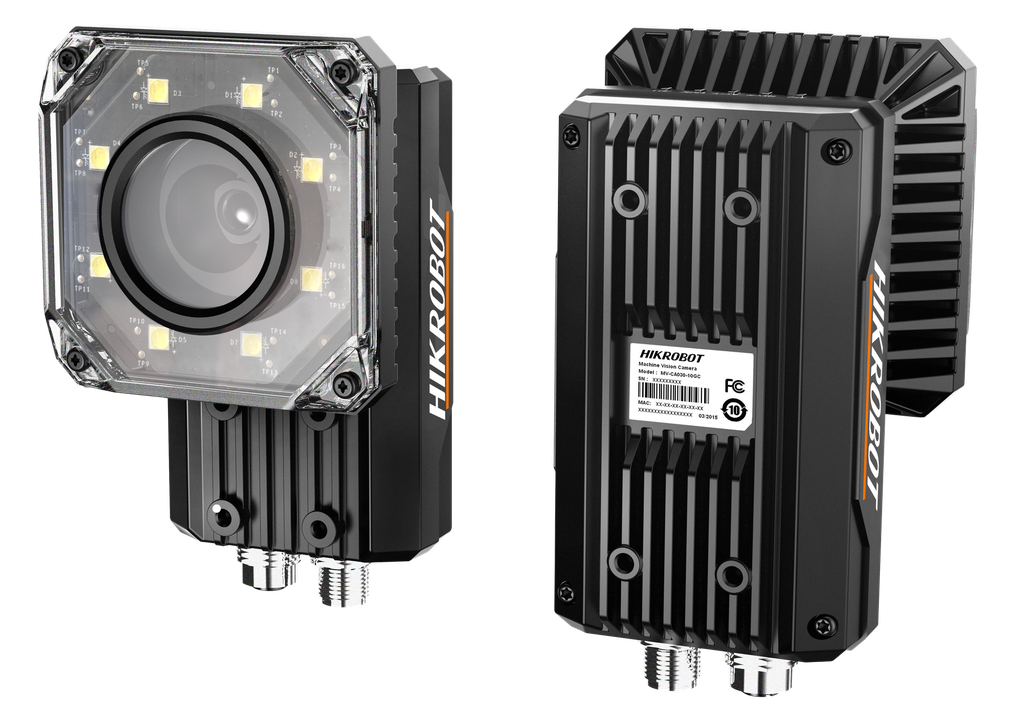

ID5060M- Smart Code Reader with 3072 × 2048 resolution, 90 codes/secmax reading speed, and 30 fps is the perfect choice for your automation project or production line. See the technical details below.
Max. frame rate: 30 fps
Max. reading speed: 90 codes/sec
Resolution: 3072 × 2048
Communication protocol: SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP
Data interface: Gigabit Ethernet
Light source: White light. Red or blue light is optional.
Dimension: 118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9")
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Certification: CE-RoHS;CE-EMC;KC
Symbologies: 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417.
Max. frame rate: 30 fps
Max. reading speed: 90 codes/sec
Resolution: 3072 × 2048
Communication protocol: SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP
Data interface: Gigabit Ethernet
Light source: White light. Red or blue light is optional.
Dimension: 118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9")
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Certification: CE-RoHS;CE-EMC;KC
Symbologies: 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417.
