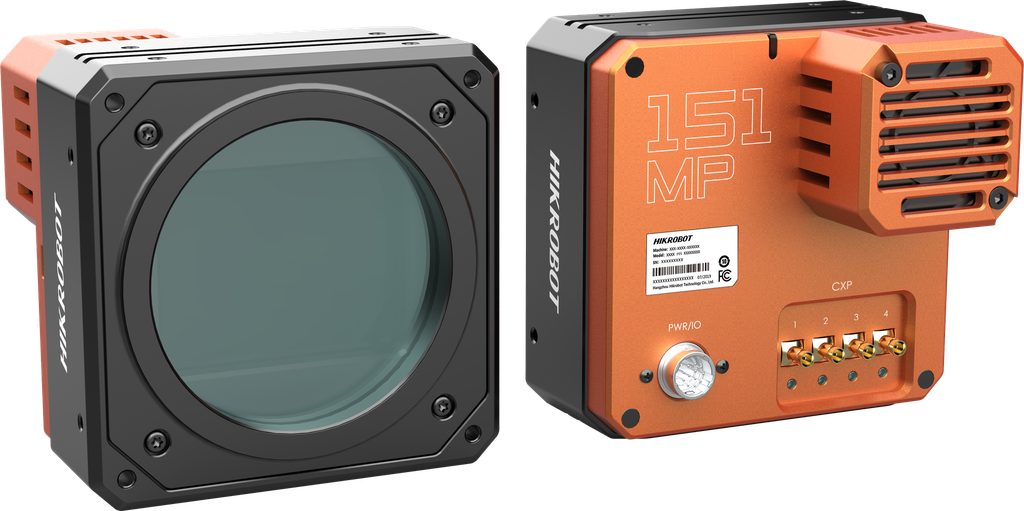

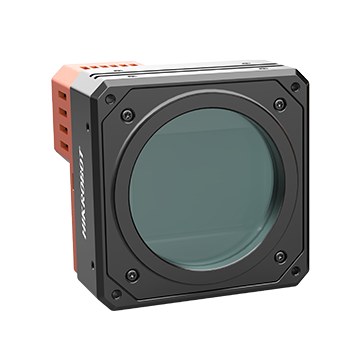

MV-CH1510-10XM-M72-NF
Sensor type: Rolling shutter CMOS
Sensor model: Sony® IMX411
Pixel size: 3.76 µm × 3.76 µm
Resolution: 14208 × 10640
Max. frame rate: 6.2 fps @14208 × 10640 Mono 8
Mono/color: Mono
Data interface: CoaXPress with DIN interface
Lens mount: M72*0.75, optical back focal length 19.55 mm (0.8")
Dimension: 100 mm × 100 mm × 74.3 mm (3.9" × 3.9" × 2.9")
Max. line rate:
Certification: CE-RoHS;FCC-SDoC;CE-EMC;UL;KC
Substitute Product:
SAP Code of Substitute Product:
