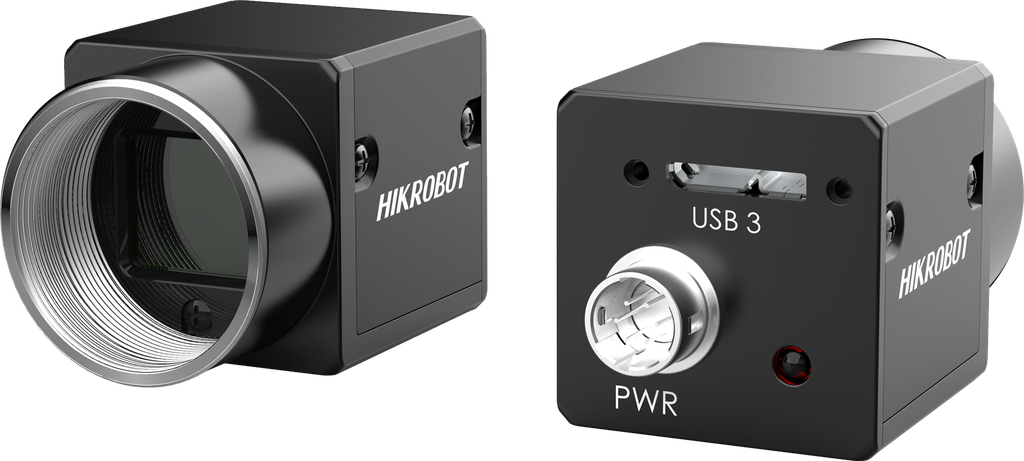

MV-CA050-20UM
CMOS, global shutter, PYTHON5000, 4.8 µm × 4.8 µm, 2592 × 2048, 71.8 fps @2592 × 2048, Mono, USB3.0, compatible with USB2.0, C-Mount, 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2"), , CE-RoHS;FCC-SDoC;CE-EMC;WEEE;REACH SVHC;KC, MV-CA050-12UM(O-STD), 306301551.
Sensor type: CMOS, global shutter
Sensor model: PYTHON5000
Pixel size: 4.8 µm × 4.8 µm
Resolution: 2592 × 2048
Max. frame rate: 71.8 fps @2592 × 2048
Mono/color: Mono
Data interface: USB3.0, compatible with USB2.0
Lens mount: C-Mount
Dimension: 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Max. line rate:
Certification: CE-RoHS;FCC-SDoC;CE-EMC;WEEE;REACH SVHC;KC
Substitute Product: MV-CA050-12UM(O-STD)
SAP Code of Substitute Product: 306301551
Sensor type: CMOS, global shutter
Sensor model: PYTHON5000
Pixel size: 4.8 µm × 4.8 µm
Resolution: 2592 × 2048
Max. frame rate: 71.8 fps @2592 × 2048
Mono/color: Mono
Data interface: USB3.0, compatible with USB2.0
Lens mount: C-Mount
Dimension: 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Max. line rate:
Certification: CE-RoHS;FCC-SDoC;CE-EMC;WEEE;REACH SVHC;KC
Substitute Product: MV-CA050-12UM(O-STD)
SAP Code of Substitute Product: 306301551
