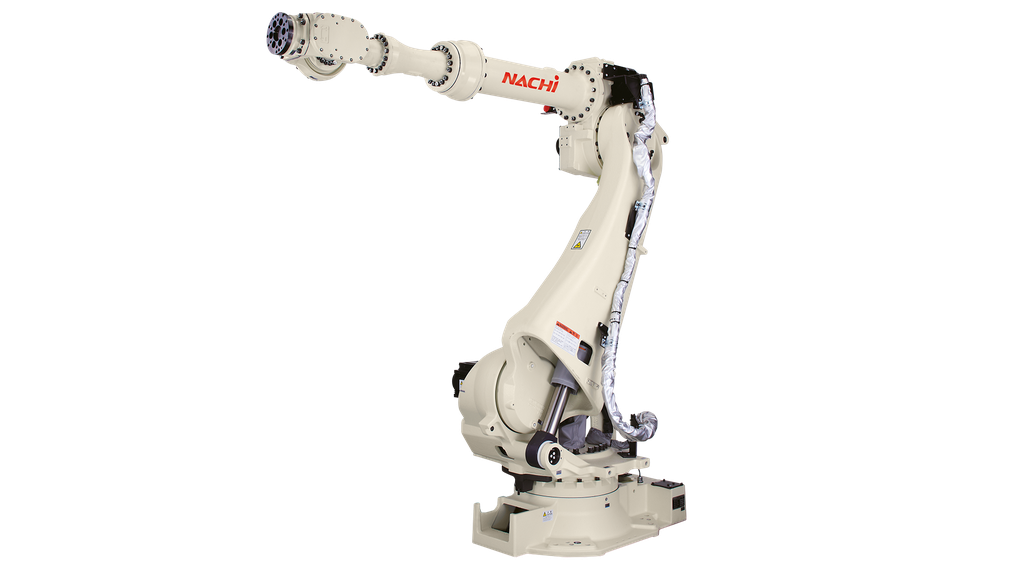

NACHI SRA166L

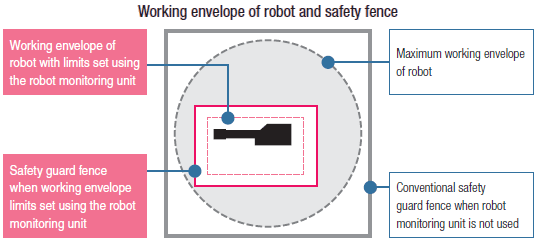

The SRA166L is a fast, compact industrial robot with a payload of 166 kg, and a reach of 2951 mm. For production safety, an RMU (Robot monitoring unit) is always included. The unit has functions such as operating range monitoring, angle monitoring, speed monitoring and stop monitoring. These can all be set from and communicated by the robot controller. The standard communication protocol is ProfiNet, but Ethernet/IP or EtherCat can be used alternatively. The SRA166L uses the Nachi FD20 controller.
The standard configuration of SRA166L consists of:
Wire Harness (m): 10
TP cable (m): 8
CN10 Cable (m): 10
Application Cable: inc.
Zeroing Jig: inc.
Build in Valves (pcs): -
I/O Board (32/32): inc.
Brake Release Kit: inc.
RMU: inc.
Fieldbus * (Profinet Slave): inc.
If your project requires another configuration, contact us and we will find the right match and parts together with you.
The standard configuration of SRA166L consists of:
Wire Harness (m): 10
TP cable (m): 8
CN10 Cable (m): 10
Application Cable: inc.
Zeroing Jig: inc.
Build in Valves (pcs): -
I/O Board (32/32): inc.
Brake Release Kit: inc.
RMU: inc.
Fieldbus * (Profinet Slave): inc.
If your project requires another configuration, contact us and we will find the right match and parts together with you.
| Robot Type: Articulated Robots |
| Robot Payload: 166 kg |

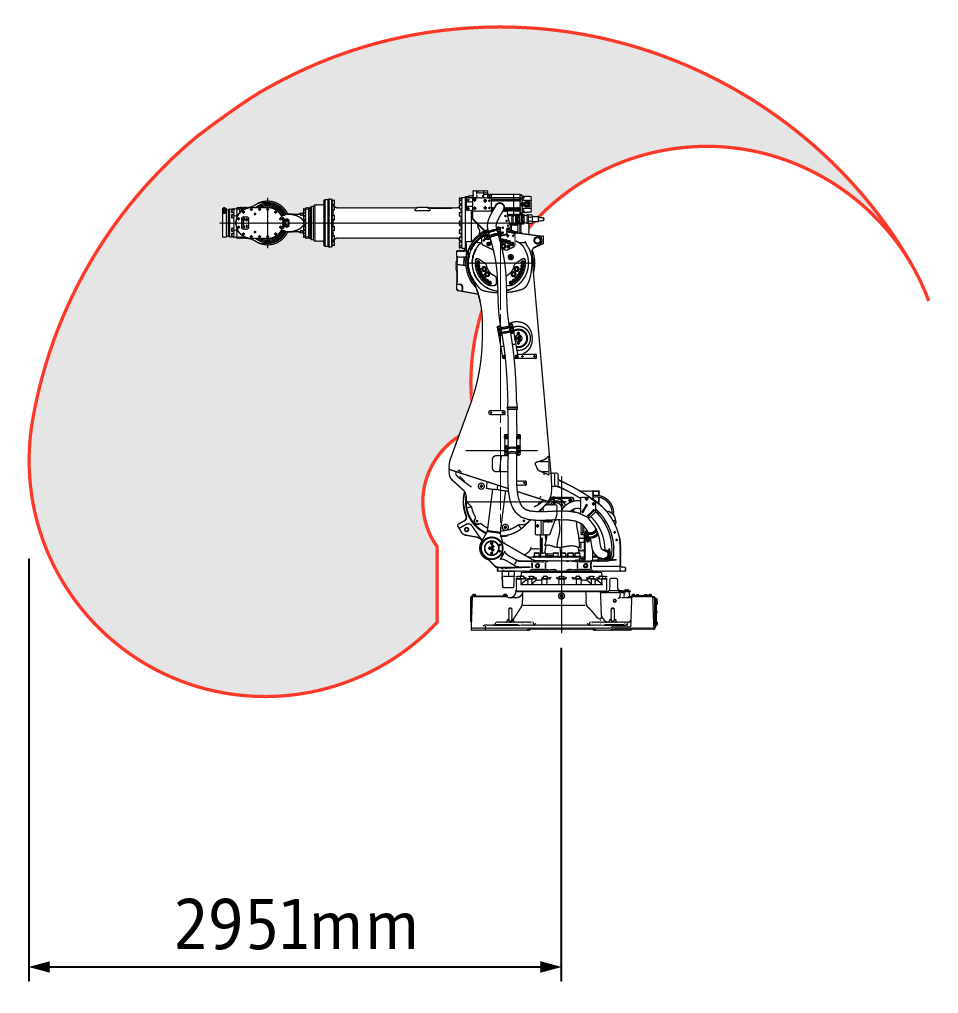

| Robot Reach: 2951 mm |
| IP Protection: IP54 (Body) / IP67 (Wrist) |
