Industrial camera

CMOS, NULL, 7 μm, 4096 × 2, , Color, Gigabit Ethernet, compatible with Fast Ethernet, M42 *1.0, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and others via lens adapter, 62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6"), Standard mode: 28 kHz @Bayer RG 8/Bayer RBGG 8/Mono 8, 14 kHz @Bayer RG 10/12/Mono 10/12, 9 kHz @RGB 8/BGR 8
High-bandwidth mode: 80 kHz @Bayer RBGG 8, 40 kHz @Bayer RG 8/RGB 8, CE-RoHS;CE-EMC;UL;KC, ,

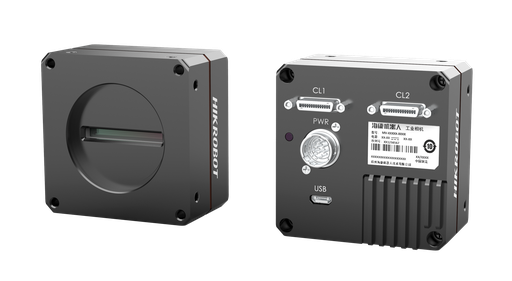

CMOS, NULL, 7 μm, 4096 × 2, , Mono, Camera Link (SDR connector); USB interface for updating firmware, M42*1.0, flange focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter, 62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5"), 40.5 kHz (Base), 81 kHz (Medium), 162 kHz (Full), 195 kHz (80-bit), CE-RoHS;CE-EMC;UL;KC, ,

CMOS, NULL, 7 μm, 4096 × 2, , Mono, Camera Link (SDR connector); USB interface for updating firmware, M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter, 62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5"), 40.5 kHz (Base), 81 kHz (Medium), 100 kHz (Full), CE-EMC;UL;KC, ,

CMOS, NULL, 7 μm, 4096 × 2, , Mono, Camera Link (SDR connector); USB interface for updating firmware, M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter, 62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5"), 40.5 kHz (Base), 81 kHz (Medium), 100 kHz (Full), CE-EMC;UL;KC, ,

CMOS, NULL, 7 μm, 4096 × 2, , Color, Camera Link (SDR connector); USB interface for updating firmware, M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter, 62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5"), 40 kHz (Base), 20 kHz/40 kHz (Base/Medium), 40 kHz/80 kHz/100 kHz (Base/Medium/Full), CE-EMC;UL;KC, ,

CMOS, NULL, 7 μm, 4096 × 2, , Color, Camera Link (SDR connector); USB interface for updating firmware, M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter, 62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5"), 40 kHz (Base), 20 kHz/40 kHz (Base/Medium), 40 kHz/80 kHz/100 kHz (Base/Medium/Full), CE-EMC;UL;KC, ,

CMOS, NULL, 7 μm, 2048 × 2, , Mono, Gigabit Ethernet, compatible with Fast Ethernet, M42 *1.0, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and others via lens adapter, 62 mm × 62 mm × 40.5 mm (2.4" × 2.4" × 1.6"), Standard mode: 58 kHz @Mono 8, 29 kHz @Mono 10/12
High-bandwidth mode: 86 kHz @Mono 8, 58 kHz @Mono 10/12, CE-RoHS;CE-EMC;UL;KC, ,

CMOS, NULL, 14 μm, 2048 × 1, , Mono, Gigabit Ethernet, compatible with Fast Ethernet, M42 *1.0, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and others via lens adapter, 62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6"), Standard mode: 56 kHz@Mono 8, 28 kHz@Mono 10/12
High-bandwidth mode: 100 kHz@Mono 8/10/12, CE-RoHS;FCC-SDoC;CE-EMC;UL;KC, ,

CMOS, NULL, 14 μm, 2048 × 2, , Color, Gigabit Ethernet, compatible with Fast Ethernet, M42 *1.0, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and others via lens adapter, 62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6"), Standard mode: 40 kHz@Bayer RG 8/Mono 8, 29.7 kHz@Bayer RG 10/12/Mono 10/12, 19.8 kHz@RBG 8/BGR 8
High-bandwidth mode: 40 kHz@RBG 8/ Bayer RG 8, CE-RoHS;FCC-SDoC;CE-EMC;UL;KC, ,

CMOS, NULL, 7 μm, 2048 × 2, , Color, Gigabit Ethernet, compatible with Fast Ethernet, M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter, 62 mm × 62 mm × 37.5 mm (2.4" × 2.4" × 1.5"), 32 kHz@ Bayer 8/Bayer 10p/Bayer 12p/ Mono 8
28 kHz@Bayer 10/Bayer 12/YUV 422 Packed/YUV 422 (YUYV) Packed/Mono 10/Mono 12
18 kHz@RGB 8/BGR 8, FCC-SDoC;CE-EMC;UL;KC, ,

CMOS, NULL, 7 μm, 2048 × 2, , Color, Gigabit Ethernet, compatible with Fast Ethernet, M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter, 62 mm × 62 mm × 37.5 mm (2.4" × 2.4" × 1.5"), 32 kHz@ Bayer 8/Bayer 10p/Bayer 12p/ Mono 8
28 kHz@Bayer 10/Bayer 12/YUV 422 Packed/YUV 422 (YUYV) Packed/Mono 10/Mono 12
18 kHz@RGB 8/BGR 8, FCC-SDoC;CE-EMC;REACH SVHC;UL;KC, ,

CMOS, NULL, 7 μm, 2048 × 1, , Mono, Gigabit Ethernet, compatible with Fast Ethernet, M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter, 62 mm × 62 mm × 37.5 mm (2.4" × 2.4" × 1.5"), 56 kHz @Mono 8, 28 kHz @Mono 10/12, 37 kHz @Mono 10p/12p, CE-RoHS;FCC-SDoC;CE-EMC;UL;KC, ,

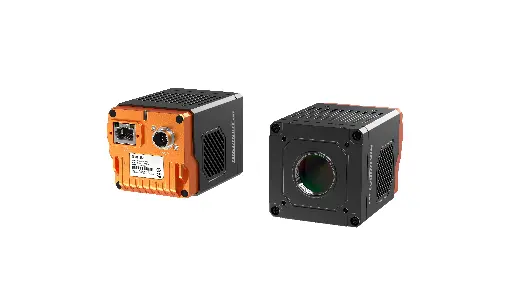

InGaAs, Sony® IMX990, 5 μm × 5 μm, 1280 × 1024, 91 fps @1280 × 1024 Mono 8, , Gigabit Ethernet, compatible with Fast Ethernet, C-mount, 58 mm × 58 mm × 82 mm (2.3" × 2.3" × 3.2"), , CE-RoHS, ,

InGaAs, Sony® IMX990, 5 μm × 5 μm, 1280 × 1024, 91 fps @1280 × 1024 Mono 8, , Gigabit Ethernet, compatible with Fast Ethernet, C-mount, 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2"), , , ,

CMOS, rolling shutter, Sony® IMX411, 3.76 µm × 3.76 µm, 28416 × 21280, 1.45 fps @28416 × 21280, Mono, CoaXPress with DIN interface, M72-mount, optical back focal length 19.55 mm (0.8"), 100 mm × 100 mm × 128.5 mm (3.9" × 3.9" × 5.1"), , CE-RoHS;CE-EMC;UL;KC, ,

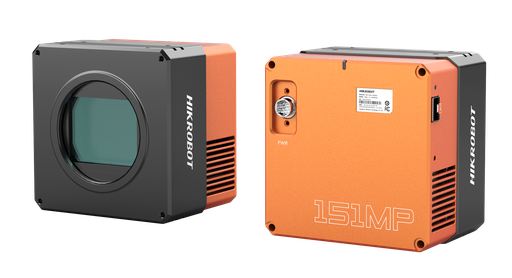

CMOS, rolling shutter, Sony® IMX411, 3.76 μm × 3.76 μm, 14208 × 10640, 6.2 fps @14208 × 10640 Mono 8, Mono, 10 Gigabit Ethernet, M72*0.75, flange back length 19.55 mm, 120 mm × 120 mm × 89 mm (4.7" × 4.7" × 3.5"), , CE-EMC;KC, ,

Rolling shutter CMOS, Sony® IMX411, 3.76 µm × 3.76 µm, 14208 × 10640, 6.2 fps @14208 × 10640 Mono 8, Color, CoaXPress with DIN interface, M72*0.75, optical back focal length 19.55 mm (0.8"), 120 mm × 120 mm × 84.6 mm (4.7" × 4.7" × 3.3"), , CE-RoHS;CE-EMC;UL;KC, ,

Rolling shutter CMOS, Sony® IMX411, 3.76 µm × 3.76 µm, 14208 × 10640, 6.2 fps @14208 × 10640 Mono 8, Mono, CoaXPress with DIN interface, M72*0.75, optical back focal length 19.55 mm (0.8"), 120 mm × 120 mm × 84.6 mm (4.7" × 4.7" × 3.3"), , CE-RoHS;CE-EMC;UL;KC, ,

Rolling shutter CMOS, Sony® IMX411, 3.76 µm × 3.76 µm, 14208 × 10640, 6.2 fps @14208 × 10640 Mono 8, Color, CoaXPress with DIN interface, M72*0.75, optical back focal length 19.55 mm (0.8"), 100 mm × 100 mm × 74.3 mm (3.9" × 3.9" × 2.9"), , CE-RoHS;CE-EMC;UL;KC, ,

Rolling shutter CMOS, Sony® IMX411, 3.76 µm × 3.76 µm, 14208 × 10640, 6.2 fps @14208 × 10640 Mono 8, Mono, CoaXPress with DIN interface, M72*0.75, optical back focal length 19.55 mm (0.8"), 100 mm × 100 mm × 74.3 mm (3.9" × 3.9" × 2.9"), , CE-RoHS;FCC-SDoC;CE-EMC;UL;KC, ,

CMOS, global shutter, Gpixel GMAX3265, 3.2 µm × 3.2 µm, 9344 × 7000, 71 fps @9344 × 7000 Mono 8, Mono, CoaXPress with Micro-BNC interface, M58*0.75, flange focal length 11.48 mm (0.5"), 60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins are optional), , CE-RoHS;CE-EMC;UL;KC, ,
