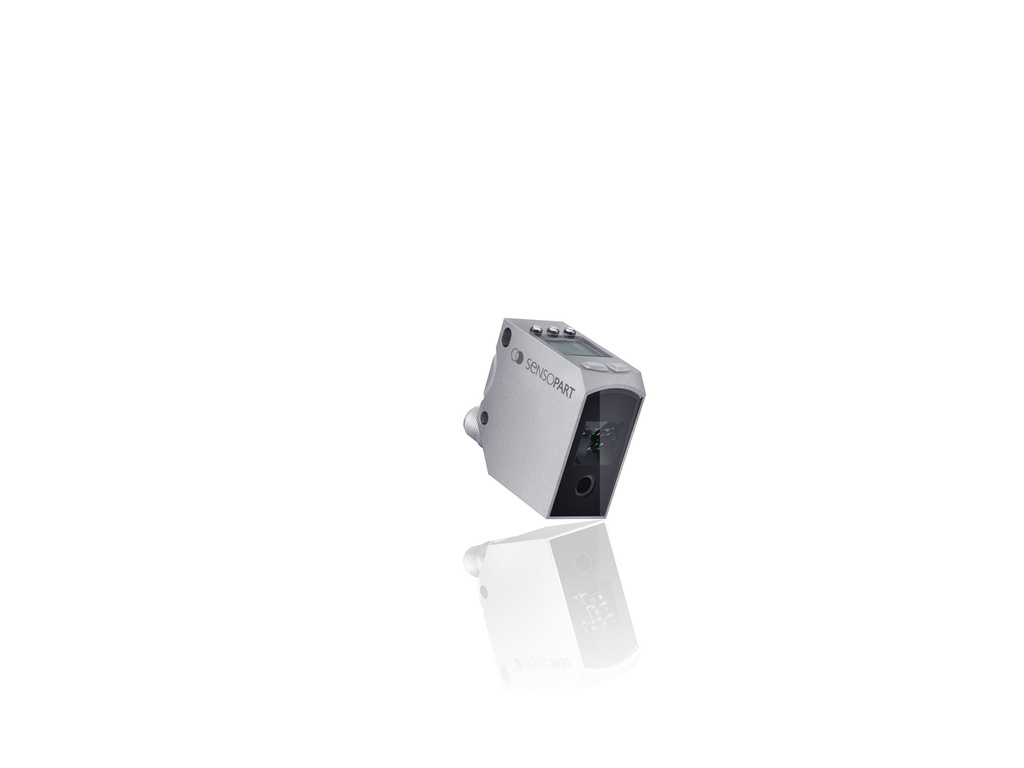

Bluelight Sensor

Description
Long scanning distance of 1.2 m
BlueLight technology with precisely adjustable background suppression – reliable operation even with highly reflective and glossy backgrounds
Precise scanning distance adjustment by means of potentiometer • Reliable detection of highly transparent or strongly light absorbing objects
Reliable detection even with angles of up to 90°

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 3
Working distance max. [mm]: 1200
Velocity [Hz] 600
Adjustment: Potentiometer
Light source: LED, blue
Switching output :PNP
Temperature range [°C] :-20 ... +60
Connection type: Plug M12, 4-pin
Enclosure rating : IP69K, IP 67

1 ... 80 mm, bluelight, bgs, fixed focus, NPN, cable 2 m 4-wire. Bring your production to new heights with Sensopart vision and sensor

Description
Miniature sensor with BlueLight technology and high-precision, fixed background suppression
Reliable switching behaviour with strongly light-absorbing and highly transparent objects
Functions reliably without reflector - even with critical object surfaces
Tamper-proof sensor version - no adjustment possible
Robust, glass-fibre reinforced plastic housing
Simple fixation and alignment through innovative dovetail mounting concept


Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 0
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +40
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP69

Description
Miniature sensor with BlueLight technology and high-precision, fixed background suppression
Reliable switching behaviour with strongly light-absorbing and highly transparent objects
Functions reliably without reflector - even with critical object surfaces
Tamper-proof sensor version - no adjustment possible
Robust, glass-fibre reinforced plastic housing
Simple fixation and alignment through innovative dovetail mounting concept


Product data
Sensor principle
Photoelectric diffuse sensor with Background Suppression
Series
F25 (34 x 20 x 12 mm)
Working distance min. [mm]
0
Working distance max. [mm]
80
Velocity [Hz]
1000
Adjustment
Control input
Light source
LED, blue
Switching output
NPN
Temperature range [°C]
-20 ... +40
Connection type
Plug M8, 4-pin
Enclosure rating
IP69

Description
Miniature sensor with BlueLight technology and high-precision, fixed background suppression
Reliable switching behaviour with strongly light-absorbing and highly transparent objects
Functions reliably without reflector - even with critical object surfaces
Tamper-proof sensor version - no adjustment possible
Robust, glass-fibre reinforced plastic housing
Simple fixation and alignment through innovative dovetail mounting concept


Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 0
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +40
Connection type: Plug M8, 4-pin
Enclosure rating: IP69

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data:
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
2
Working distance max. [mm]
50
Velocity [Hz]
1000
Adjustment
Control input
Light source
LED, blue
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP 67

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating: IP 67

2 … 50 mm, blue light, bgs, fixed focus, PNP, cable 2 m 4-wire. Bring your production to new heights with Sensopart vision and sensor

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data: Sensor principle
Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz] :1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data:
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating: IP 67

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data:
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm] :30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP 67

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating: IP 67

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data:
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP 67

Photoelectric diffuse sensor with background suppression, 10 … 100 mm, blue light, BGS, teach-in, Auto-Detect, pigtail 200 mm wi. Bring your production to new heights with Sensopart vision and sensor

Photoelectric diffuse sensor with background suppression, 10 … 100 mm, blue light, BGS, teach-in, Auto-Detect, cable 2 m 4-wire,. Bring your production to new heights with Sensopart vision and sensor

3 … 150 mm, Bluelight, HGA, Teach-in, Auto-detect, 2xQ, pigtail 200 mm with plug M8 4-pin, IO-Link. Bring your production to new heights with Sensopart vision and sensor

3 … 150 mm, Bluelight, HGA, Teach-in, Auto-detect, 2xQ, cable 2m 4-wire, IO-Link. Bring your production to new heights with Sensopart vision and sensor
