Optical Sensor

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

Laser through-beam sensor, emitter, red light, laser class 1, SN=3000mm, PNP, 4000Hz, IP67, cable 2m 4-wire. Bring your production to new heights with Sensopart vision and sensor

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• High switching frequency for detection in even the fastest processes
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67

Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
Suitable for numerous different reflectors
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67

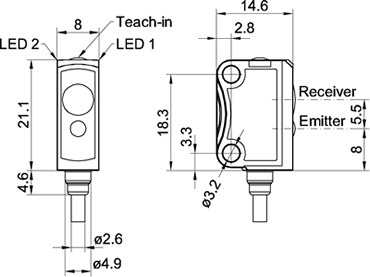

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

Description
* Sub-miniature sensor for installation in the smallest of spaces
* Bright, precise laser light spot for optimum small-part detection and simple alignment
* Suitable for numerous different reflectors
* User-friendly operation via electronic Teach-in button or control line
* Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

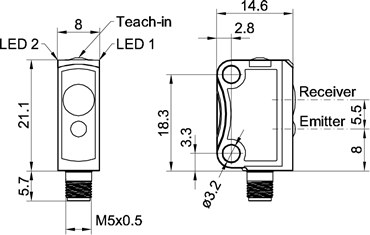

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

Description
• Measurement value output via IO-Link
• Minimum weight
• Also suited to smallest installation spaces thanks to minimal dimensions
• Adjustable averaging times
• Laser class 1 for optimum eye safety

Product data

Linearity [mm]
0.4
Sensor principle
Distance sensor with triangulation
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
10
Working distance max. [mm]
70
Velocity [Hz]
1000
Interface
IO-Link
Type
Cubic
Light source
Laser, red (Class 1)
Switching output
PNP/NPN (auto detect)
Amount of swithing outputs
1
Resolution [mm]
0.01
Repeatability [mm]
0.1
Temperature range [°C]
-20 ... +50
Temperature drift [%]
0,01 mm / K
Measurement output
IO-Link
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

Description
• Measurement value output via IO-Link
• Minimum weight
• Also suited to smallest installation spaces thanks to minimal dimensions
• Adjustable averaging times
• Laser class 1 for optimum eye safety

Product data
Linearity [mm]
0.4
Sensor principle
Distance sensor with triangulation
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
10
Working distance max. [mm]
70
Velocity [Hz]
1000
Interface
IO-Link
Type
Cubic
Light source
Laser, red (Class 1)
Switching output
PNP/NPN (auto detect)
Amount of swithing outputs
1
Resolution [mm]
0.01
Repeatability [mm]
0.1
Temperature range [°C]
-20 ... +50
Temperature drift [%]
0,01 mm / K
Measurement output
IO-Link
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67

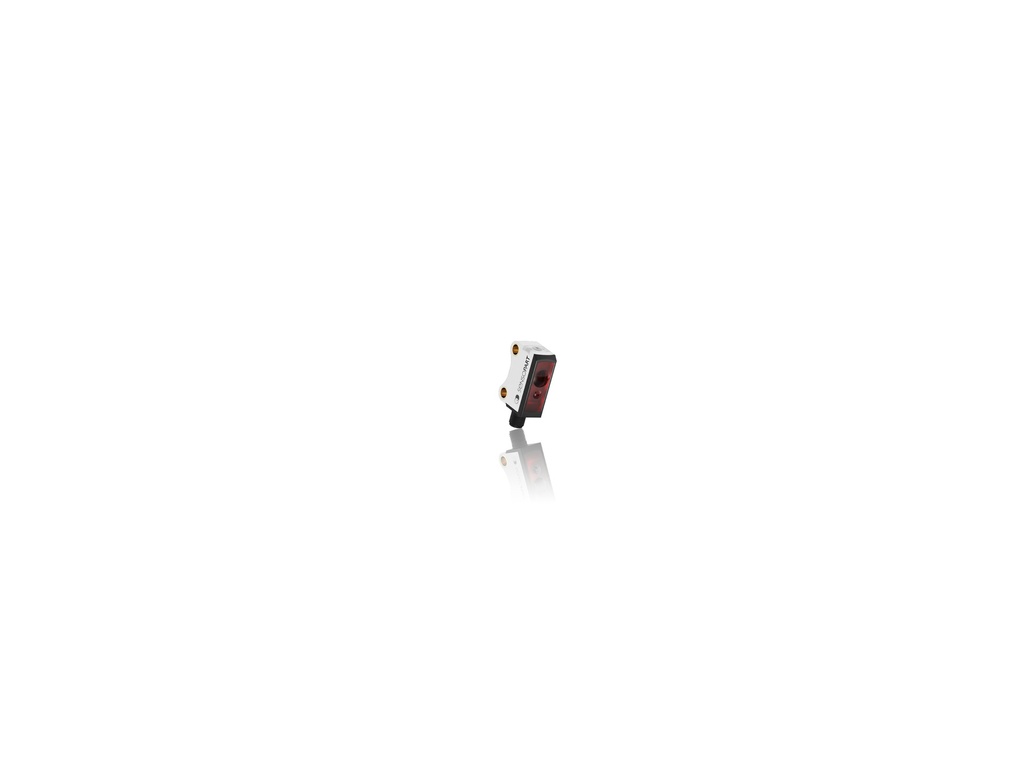

Photoelectric diffuse sensor with background suppression (fix focus), 15 mm, Laser, Auto-Detect, plug M5 4-pin, IP 67, IO-Link. Bring your production to new heights with Sensopart vision and sensor

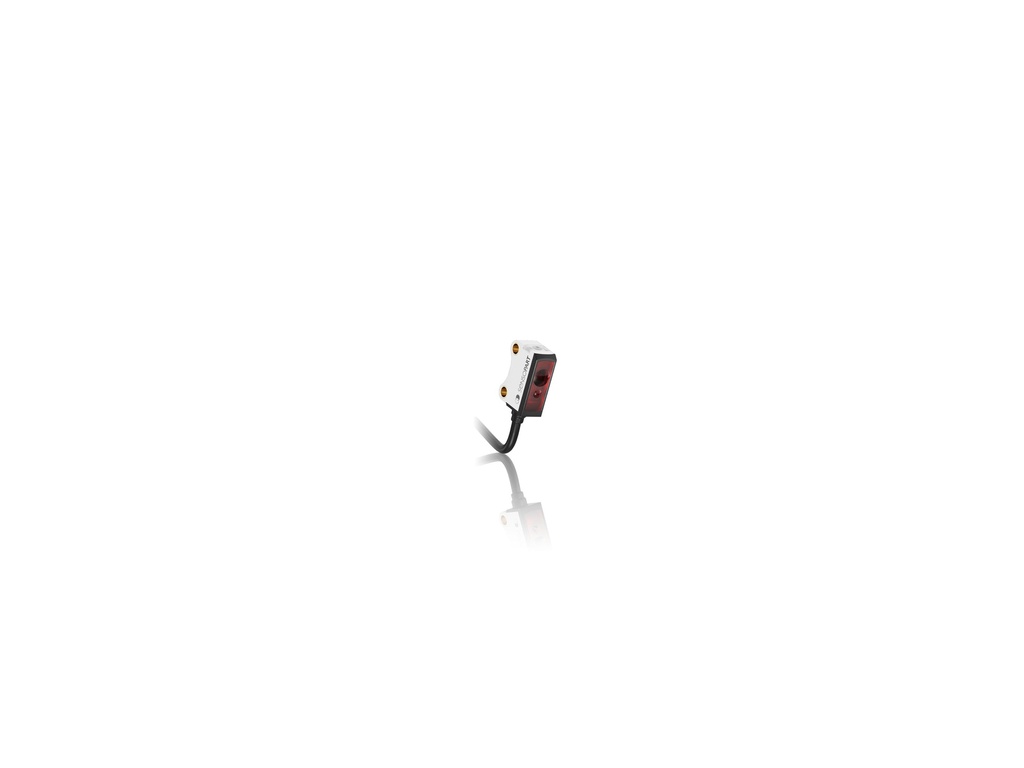

Photoelectric diffuse sensor with background suppression (fix focus), 15 mm, Laser, Auto-Detect, cable 2m 4-wire, IP 67, IO-Link. Bring your production to new heights with Sensopart vision and sensor

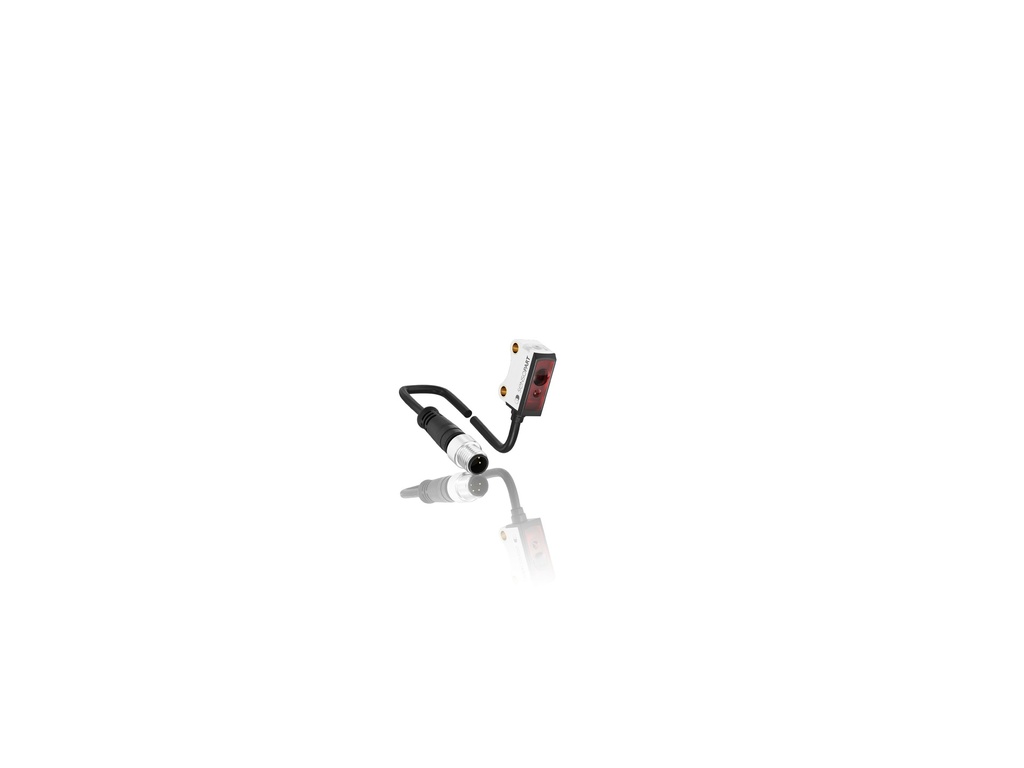

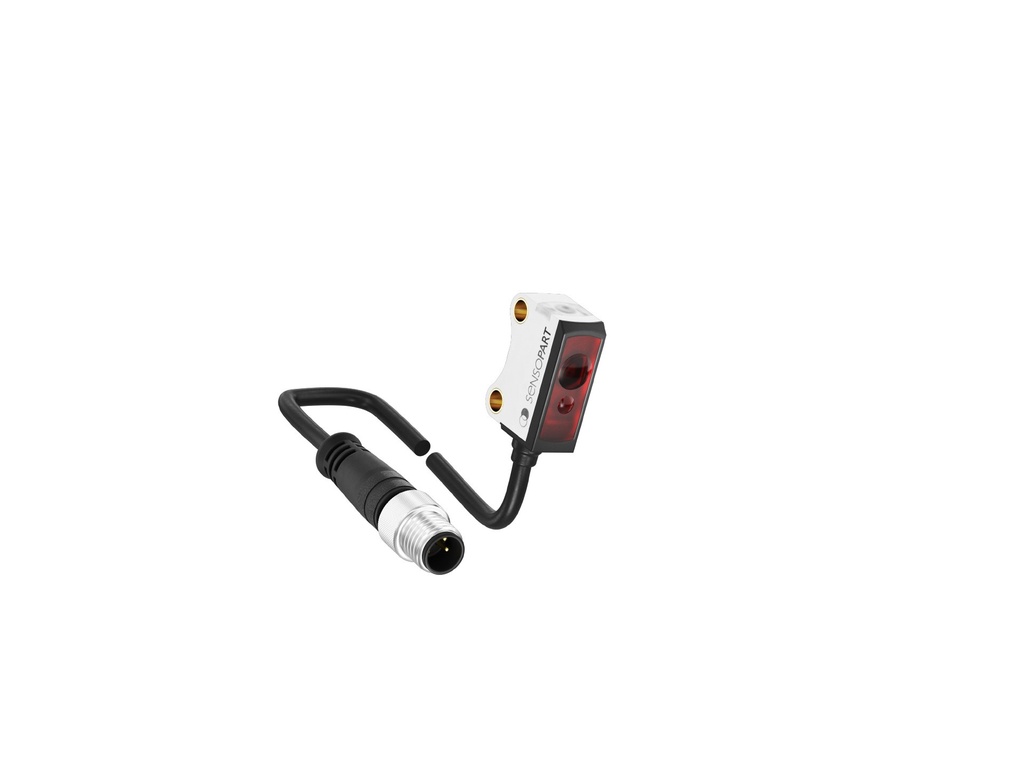

Photoelectric diffuse sensor with background suppression (fix focus), 15 mm, Laser, Auto-Detect, pigtail 200 mm with plug M8 4-p. Bring your production to new heights with Sensopart vision and sensor
