Retro-reflective

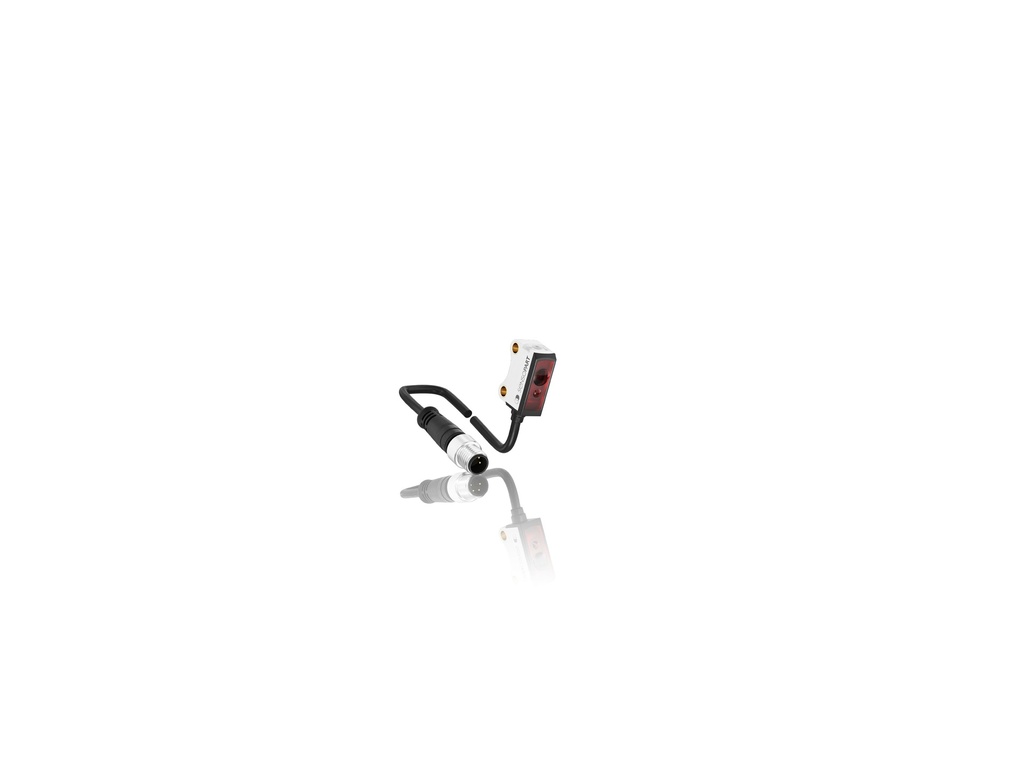

0.1 ... 1.6 m, red light, teach-in, NPN, pigtail 200 mm with connector M8 4-pin. Bring your production to new heights with Sensopart vision and sensor

0.1 … 1.6 m, red light, teach-in, NPN, pigtail 200 mm with connector M8 4-pin. Bring your production to new heights with Sensopart vision and sensor

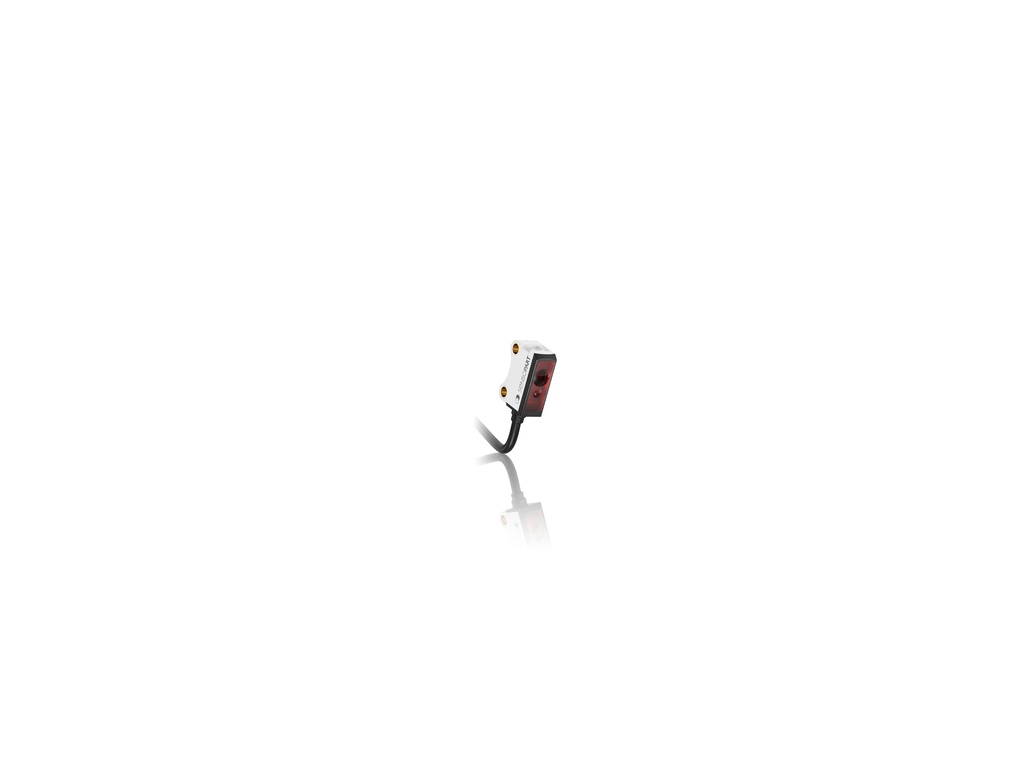

0.1 ... 1.6 m, red light, teach-in, NPN, cable 2 m 4-wire. Bring your production to new heights with Sensopart vision and sensor

0.1 ... 1.6 m, red light, teach-in, PNP, pigtail 200 mm with connector M8 3-pin. Bring your production to new heights with Sensopart vision and sensor

0.1 ... 1.6 m, red light, teach-in, PNP, pigtail 200 mm with connector M8 4-pin. Bring your production to new heights with Sensopart vision and sensor

0.1 ... 1.6 m, red light, teach in, PNP, cable 2 m 4-wire. Bring your production to new heights with Sensopart vision and sensor

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67

Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
Suitable for numerous different reflectors
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

Description
* Sub-miniature sensor for installation in the smallest of spaces
* Bright, precise laser light spot for optimum small-part detection and simple alignment
* Suitable for numerous different reflectors
* User-friendly operation via electronic Teach-in button or control line
* Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

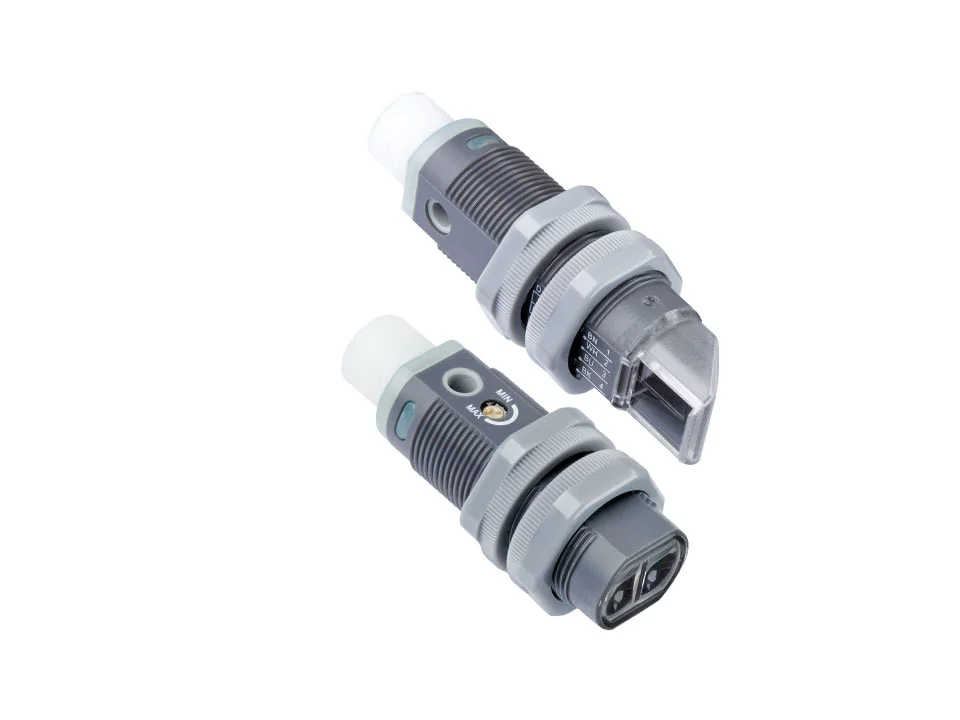

Retro-reflecive light barrier, M18,red light, PNP N.O., 60-2000mm, plugM12 4 pins. Bring your production to new heights with Sensopart vision and sensor
