Optical Sensor

FT 25-RGB2-GSL-KL4
Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 10000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Pigtail, plug M12, 4-wire, 150 mm
Enclosure rating: IP 67, IP69
268,14 € 268.14 EUR
FT 25-RGB2-GSL-M4
Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 10000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Plug M8, 4-pin
Enclosure rating: IP 67, IP69
242,63 € 242.63 EUR
FT 25-RGB1-GSL-M4M
Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 25000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69
294,74 € 294.74 EUR
FT 25-RGB1-GSL-KL4
Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 25000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]:-20 ... +55
Connection type:Pigtail, plug M12, 4-wire, 150 mm
Enclosure rating: IP 67, IP69
299,62 € 299.62 EUR
FT 25-RGB2-GS-KL4
RGB contrast sensor, 12 +/- 3mm, 10 kHz, Push Pull, teach in, pigtail 150mm with plug M12 4-pins, IP67 & IP69K For this prodcut. Bring your production to new heights with Sensopart vision and sensor
337,62 € 337.62 EUR

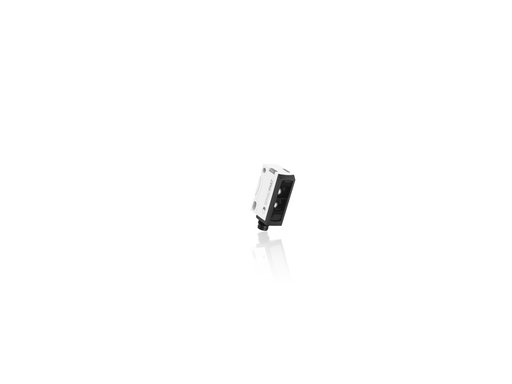

FT 25-RGB2-GS-M4 (1. gen)
Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Plug M8, 4-pin
Enclosure rating: IP 67, IP69
305,59 € 305.59 EUR
FT 25-RGB1-GS-M4M
RGB contrast sensor, 12 +/- 3mm, 25 kHz Push Pull, teach in metall plug M8 4-pins IP67 & IP69K For this prodcut a new version is. Bring your production to new heights with Sensopart vision and sensor
370,73 € 370.73 EUR
FT 25-RGB1-GS-KL4
Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Pigtail, plug M12, 4-wire, 150 mm
Enclosure rating: IP 67, IP69
377,24 € 377.24 EUR
FT 25-RF1-PNSL-M4M
Photoelectric proximity sensor with background suppression (fixed focus), 60 mm, red light, LED, Auto-Detect, metal plug M8 4-pi. Bring your production to new heights with Sensopart vision and sensor
94,87 € 94.87 EUR
FT 25-RF2-PNSL-K4
Photoelectric proximity sensor with background suppression (fixed focus), 80 mm, red light, LED, Auto-Detect, cable 2 m 4-wire,. Bring your production to new heights with Sensopart vision and sensor
86,24 € 86.24 EUR
FT 25-RF2-PNSL-M4
Photoelectric proximity sensor with background suppression (fixed focus), 80 mm, red light, LED, Auto-Detect, fixed settings, pl. Bring your production to new heights with Sensopart vision and sensor
82,32 € 82.32 EUR
FT 25-RF1-PNSL-K4
Photoelectric proximity sensor with background suppression fixed focus, 60 mm, red light, LED, Auto-Detect, cable 2 m 4-wire, IP. Bring your production to new heights with Sensopart vision and sensor
86,24 € 86.24 EUR
FT 25-RF1-PNSL-M4
Photoelectric proximity sensor with backgrpund suppression (fixed focus), 60 mm, red light, LED, Auto-Detect, plug M8 4-pin, IP6. Bring your production to new heights with Sensopart vision and sensor
82,32 € 82.32 EUR
FT 25-RF1-PS-M4M
Proximity sensor with backgrpund suppression, (fixed focus), 60mm, redlight, LED, PNP, metal plug M8 4-pin, IP67 & IP69K For thi. Bring your production to new heights with Sensopart vision and sensor
114,08 € 114.08 EUR
FT 25-RF2-NS-K4
For this prodcut a new version is available 608-11061 FT 25-RF2-PNSL-K4. That offers additional functionality via IO-Link. Morep. Bring your production to new heights with Sensopart vision and sensor
103,49 € 103.49 EUR
FT 25-RF2-PS-K4
Proximity switch with background suppression, 80mm, Fix Focus, PNP NO/NC, 2m cable For this prodcut a new version is available60. Bring your production to new heights with Sensopart vision and sensor
103,49 € 103.49 EUR
FT 25-RF2-PS-M4
For this prodcut a new version is available 608-11060 FT 25-RF2-PNSL-M4. That offers additional functionality via IO-Link. Morep. Bring your production to new heights with Sensopart vision and sensor
98,79 € 98.79 EUR
FT 25-RF1-PS-K4
Photoelectric proximity sensor with background suppression, fixed focus, 60mm, redlight, LED, PNO, cable 2m 4-pin, IP67 & IP69K. Bring your production to new heights with Sensopart vision and sensor
103,49 € 103.49 EUR
FT 25-RF1-PS-M4
Proximity sensor with backgrpund suppression, (fixed focus), 60mm, redlight, LED, PNP, plug M8 4-pin, IP67 & IP69K For this prod. Bring your production to new heights with Sensopart vision and sensor
98,79 € 98.79 EUR
FT 25-RA-170-PNSUL-M4M
Description
Miniature housing with measurement ranges up to 200 mm for an easy integration and high flexibility
High linearity and high repeatability for precise control tasks
Almost surface independant detection on homogeneous object surfaces
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable
Measurement value output via IO-Link

Product data:
Linearity [mm]: 2
Sensor principle: Distance sensor with triangulation
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 30
Working distance max. [mm]: 200
Velocity [Hz]: 1000
Interface: IO-Link
Type: Cubic
Light source: LED, red
Switching output: PNP/NPN (auto detect)
Amount of swithing outputs: 1
Resolution [mm]: 0.68
Repeatability [mm]: 1
Temperature range [°C]: -20 ... +60
Temperature drift [%]: 0,2 mm / K
Measurement output: Analog (voltage), IO-Link
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69K
313,77 € 313.77 EUR
FT 25-RA-60-PNSUL-M4M
Description
Miniature housing with measurement ranges up to 200 mm for an easy integration and high flexibility
High linearity and high repeatability for precise control tasks
Almost surface independant detection on homogeneous object surfaces
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable
Measurement value output via IO-Link

Product data:
Linearity [mm]: 0.4
Sensor principle: Distance sensor with triangulation
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 20
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Interface: IO-Link
Type: Cubic
Light source: LED, red
Switching output: PNP/NPN (auto detect)
Amount of swithing outputs: 1
Resolution [mm]: 0.12
Repeatability [mm]: 0.4
Temperature range [°C]: -20 ... +60
Temperature drift [%]: 0,1 mm / K
Measurement output: Analog (voltage), IO-Link
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69K
301,54 € 301.54 EUR
