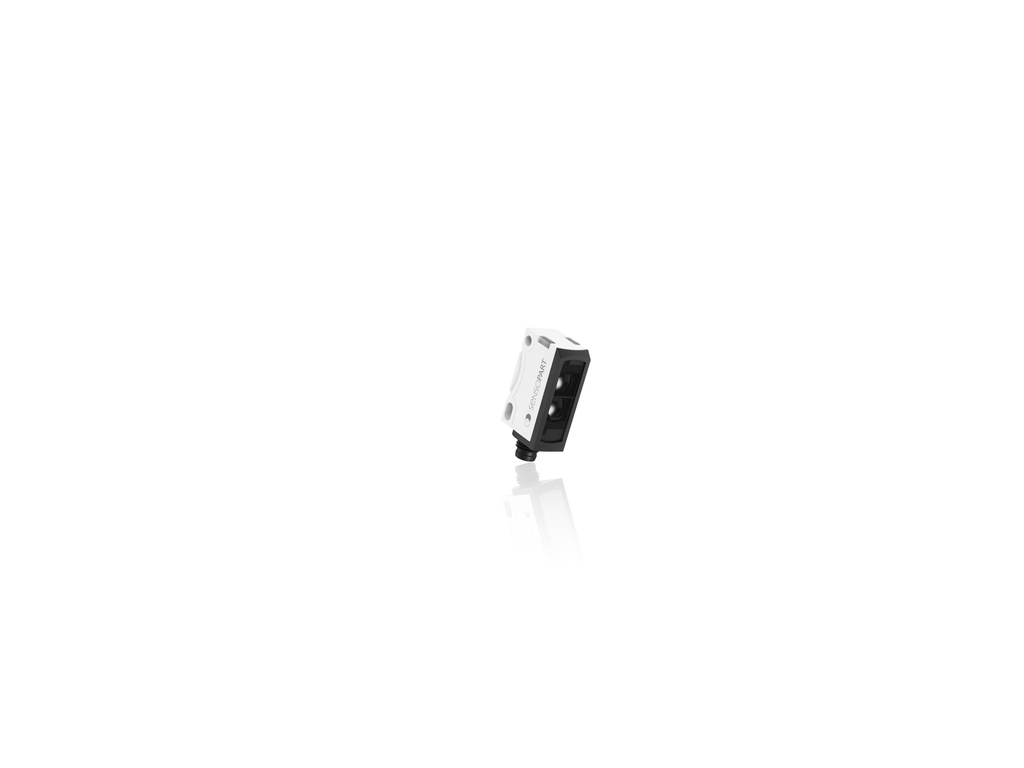

FT 25-RGB2-GS-M4 (1. gen)

Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Plug M8, 4-pin
Enclosure rating: IP 67, IP69
