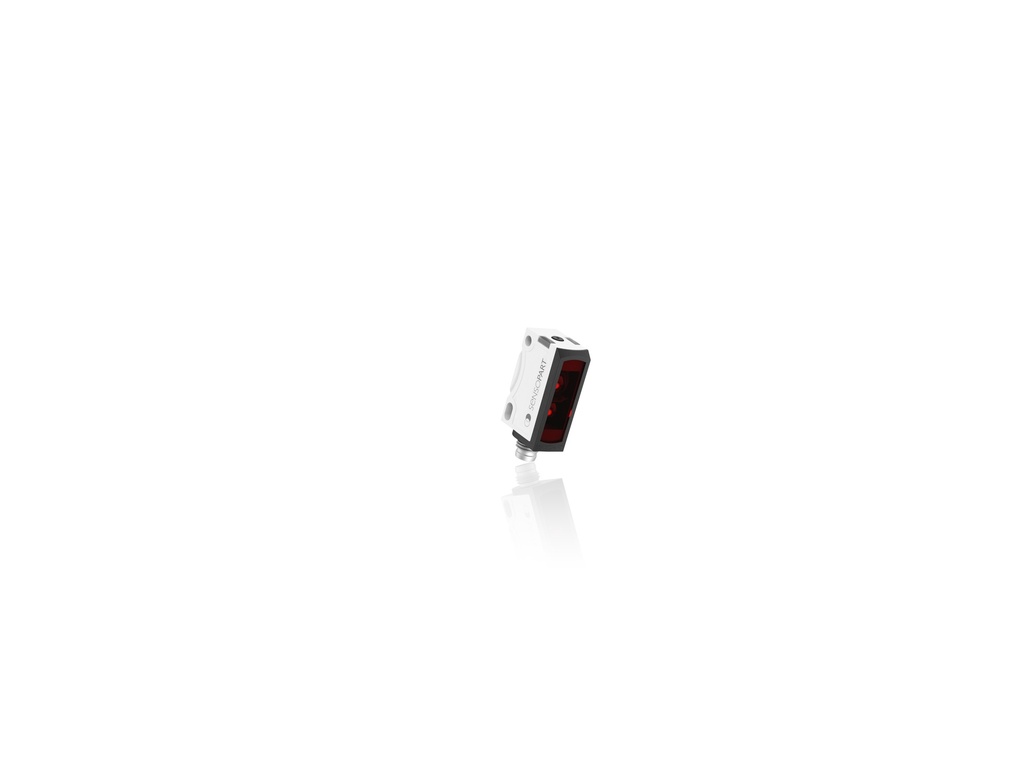

FT 25-RA-170-PSU-M4M (1. Gen.)

Description
A follow up product is available.

Miniature housing with measurement ranges up to 200 mm for an easy integration and high flexibility
High linearity and high repeatability for precise control tasks
Almost surface independant detection on homogeneous object surfaces
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable

Product data:
Linearity [mm]: 2
Sensor principle: Distance sensor with triangulation
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 30
Working distance max. [mm]: 200
Velocity [Hz]: 1000
Type: Cubic
Light source: LED, red
Switching output: PNP, PNP/NPN (auto detect)
Amount of swithing outputs: 1
Resolution [mm]: 0.68
Repeatability [mm]: 1
Temperature range [°C]: -20 ... +60
Temperature drift [%]: 0,2 mm / K
Measurement output: Analog (voltage)
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69K
