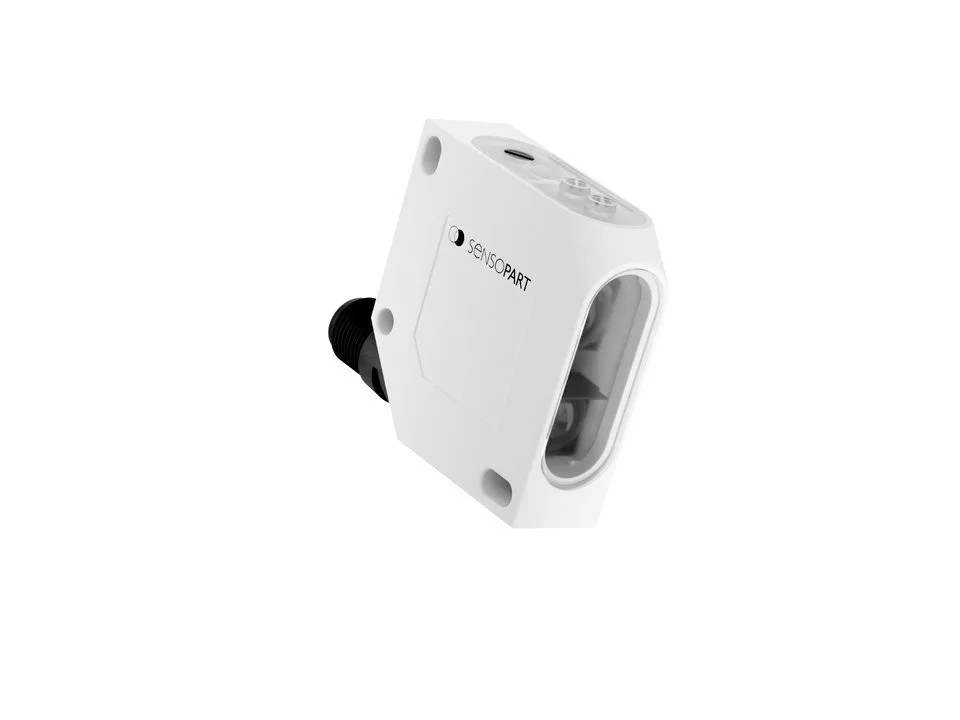

FT 50 C-3-PSL8

Description
Colors are reliably detected despite fluctuating scanning distances thanks to patented optical technology
3 colors distinguishable via 3 switching outputs
Even the smallest of color differences are reliably detected
Easy teach-in of colors via Teach-in button or control line

Product data:
Amount of colors: 3
Sensor principle: Color sensor
Spot size [mm]: 4 x 4 @ 40 mm
Series: F50 (50 x 50 x 17 mm)
Working distance min. [mm]: 12
Working distance max. [mm]: 32
Light source: LED, white
Switching output: PNP
Temperature range [°C]: -10 ... +55
Connection type: Plug M12, 8-pin
Enclosure rating: IP 67
