Cobot Palleteringsstation - EasyPal 21L
EasyPal 21L er en løsning til palletering uden behov for programmering eller kode, udstyret med en lift, der kan palletere kasser, metalgenstande og meget mere. Den er nem at installere eller integrere i din produktionslinje og er klar til brug på ingen tid.
Indtast blot dine mål for paller og produkter samt dine præferencer for mellemlægsark, orientering, mønster og palleteringsstil – og du er klar.
Denne model er udstyret med en Rokae Cobot CR25-5 og en lift, som gør det muligt for robotten at palletere en samlet vægt på 25 kg (griber + objekt). Med en standard ~3 kg griber kan du palletere 21 kg med denne cobot-konfiguration. Den kan palletere højere end EasyPal 21, som ikke har en lift installeret.
Download databladet for at se fordele og tekniske detaljer om løsningen.
Just enter your pallet and product measurements, your wishes on cardboard liner, orientation, pattern and palletizing style; and you are good to go.
This model is equipped with a Rokae Cobot CR25-5 and a lift, which enables the robot to palletize a total weight of 25 kg (Gripper + object). With a standard ~3 kg gripper, you can palletize 21 kg with this cobot configuration. It can palletize higher than the EasyPal 21 which has no lift installed.
Download the datasheet for the advantages and technical details of the solution.
Inkl. DAP
Installation
Standard: 1300 mm x 1667 mm
With Safety Fence: Dependable on pallet size ....
Air Source: 0.5 Mpa - 0.8 Mpa, Air consumption: 400L/min
Power Source: AC 200-240V, 50Hz
Description

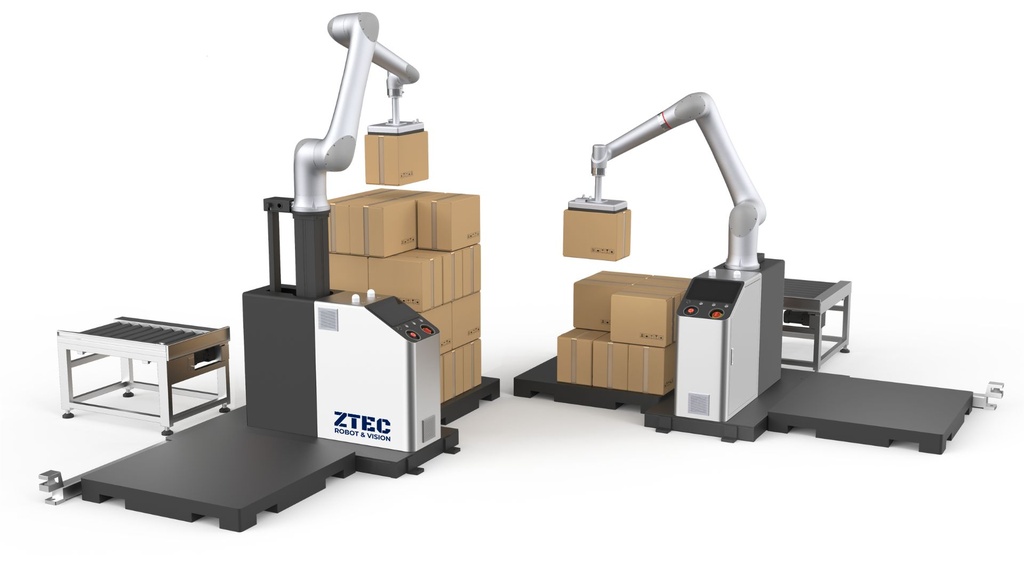

Easy Pal cobot workstation palletizes items from a conveyor belt onto two fixed pallet spots with high precision. Easy Pal is versatile and is easily installed in your production area. Relocate the workstation easily.
Included in Easy Pal is the Rokae Robot Assist software that allows anyone to quickly develop and implement new palletizing tasks and patterns via its intuitive and user-friendly interface.
The standard version of Easy Pal comes without protective shielding, giving it a minimal installation footprint. Easy Pal can also be upgraded to our 'High Speed' version, which includes safety fencing and safety equipment to ensure reduced speed when people are near the front of, or within, the working area.
Altid Inkluderet
- Torque Force Sensor i cobot
- Software - Robot Assist
- To pallestationer
- Status LED indikator i fronten af kabinettet
Tilvalg
- High speed mode (Kræver afskærmning, tunnel og scanner)
- Mellemlagspapir
- Rullebaner til transport af emner
- Remote support
- Serviceaftale
- Smart stregkode scanner
- Pneumatisk trykovervågning
