MV-SC3050M-08M-WBN(O-STD)V3.0

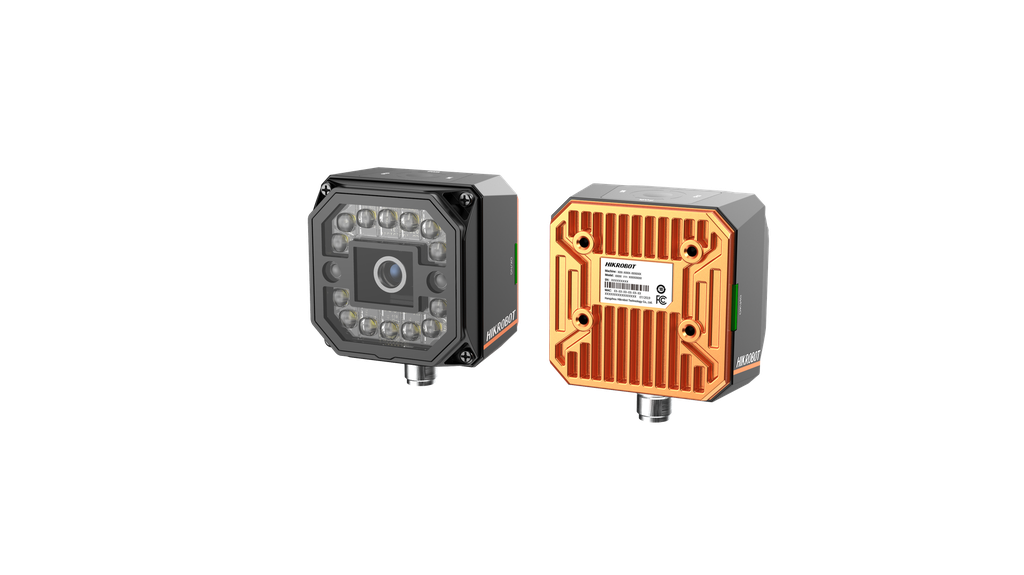

SC3050M- Smart Camera with 2368 × 1760 resolution, Mono, and 30 fps is the perfect choice for your automation project or production line.
Max. frame rate: 30 fps
Mono/color: Mono
Resolution: 2368 × 1760
Communication protocol: Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP
Lens cap: Transparent lens cap. Polarization or infrared filter lens cap is optional.
Light source: White light by default. Red/blue/near-infrared is optional.
Dimension: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Ingress protection: IP67 (under proper installation of lens and wiring)
Dimension: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Certification: CE-RoHS;;CE-EMC;KC
Max. frame rate: 30 fps
Mono/color: Mono
Resolution: 2368 × 1760
Communication protocol: Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP
Lens cap: Transparent lens cap. Polarization or infrared filter lens cap is optional.
Light source: White light by default. Red/blue/near-infrared is optional.
Dimension: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Ingress protection: IP67 (under proper installation of lens and wiring)
Dimension: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Certification: CE-RoHS;;CE-EMC;KC
| Vision Mega Pixel: 3 MP |
| Vision Resolution: 2368 x 1760 |
| Vision Mono/color: Mono |
| Max. frame rate: 30 fps |
