MV-SC3050M-12M-WBN(0-STD)V3.0
Resolution : 5Mp
Number of pixels (H x V) : 2368 × 1670
Frame Rate: 30fps
Shutter Type: Global Shutter
Color: Mono

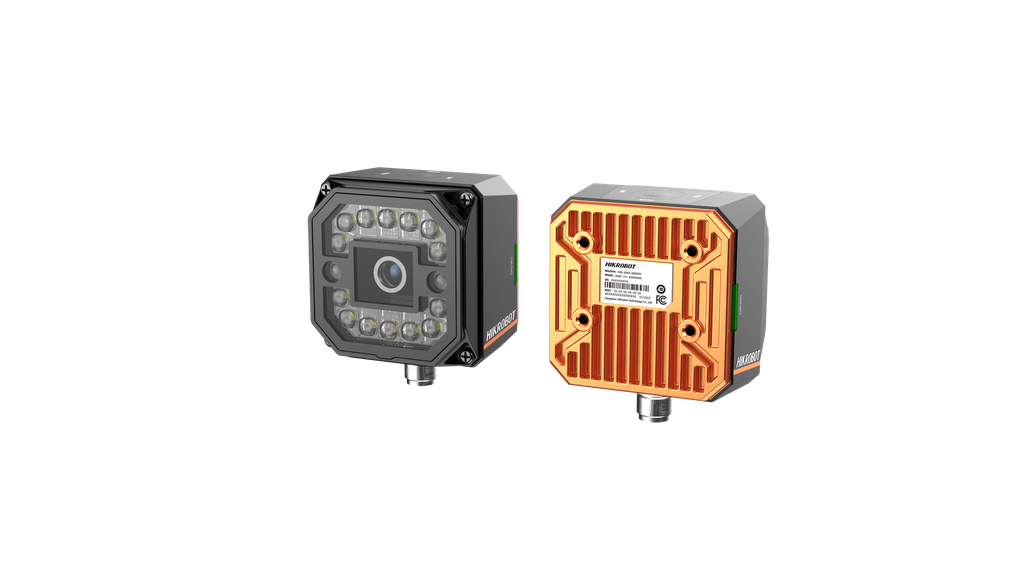

Smart vision sensor, 5MP, White LED, 12mm lens.
Includes a IO&Power Cable×1(17pin to OPEN)
Max. frame rate: 30 fps
Mono/color: Mono
Resolution: 2368 × 1760
Communication protocol: Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP
Lens cap: Transparent lens cap. Polarization or infrared filter lens cap is optional.
Light source: White light by default. Red/blue/near-infrared is optional.
Dimension: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Ingress protection: IP67 (under proper installation of lens and wiring)
Dimension: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Certification: CE-RoHS;;CE-EMC;KC
