Vision

Light Controller For Thread Lighting LE201-750W48-2. Check the specification document below or contact us for more info.

1/2 Extension Cables. Check the specification document below or contact us for more info.

1/1 Extension Cables. Check the specification document below or contact us for more info.

1/1 Extension Cables. Check the specification document below or contact us for more info.

C3000X series vision sensor，12mm focal length，5MP，Color

Key Feature

Adopts embedded hardware platform to realize high-speed image processing.

Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.

Supports RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP and other communication modes.

Adopts multiple IO interfaces for input and output signals.

Supports viewing the device's status in real time via 360° visual indicator, convenient for debugging and maintenance.

Rotatable cable tail design, suitable for narrow space.

Adopts polarized, diffused, and full-transparent multiple optical lighting with good environmental adaptability.

IP67 protection without fear of harsh industrial application environments.

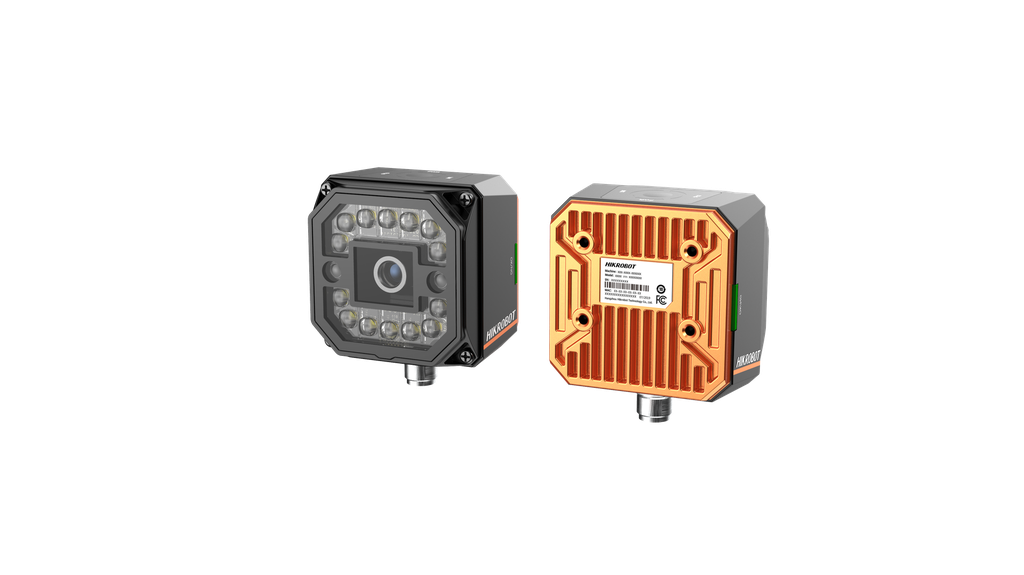

Smart vision sensor, 1.6MP, White LED, 6mm lens.
Includes a IO&Power Cable×1(17pin to OPEN)

Key Feature

Adopts embedded hardware platform for high-speed image processing.

Adopts built-in positioning and measurement algorithms to object's existence, quantity, location, etc.

Multiple IO interfaces for input and output signals.

Multiple indicators for displaying device status.

Adopts light source to ensure uniform brightness in the illuminated area.

Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, etc.

Resolution : 5Mp
Number of pixels (H x V) : 2368 × 1670
Frame Rate: 30fps
Shutter Type: Global Shutter
Color: Mono

Smart vision sensor, 5MP, White LED, 8mm lens.
Includes a IO&Power Cable×1(17pin to OPEN)

2k linescan camera，color，GPixel，7μm

Key Feature

Supports RGB true color output and image high-bandwidth function.

Supports Gamma correction, FFC correction, LUT, black level, etc.

Adopts bi-directional I/O and flexible configuration for input/output signals.

Supports flexible installation from different sides.

Compatible with GigE Vision V2.0 protocol and GenlCam standard.

SC6050C- Smart Camera with 2560 × 2048 resolution, Color, and 40 fps is the perfect choice for your automation project or production line.

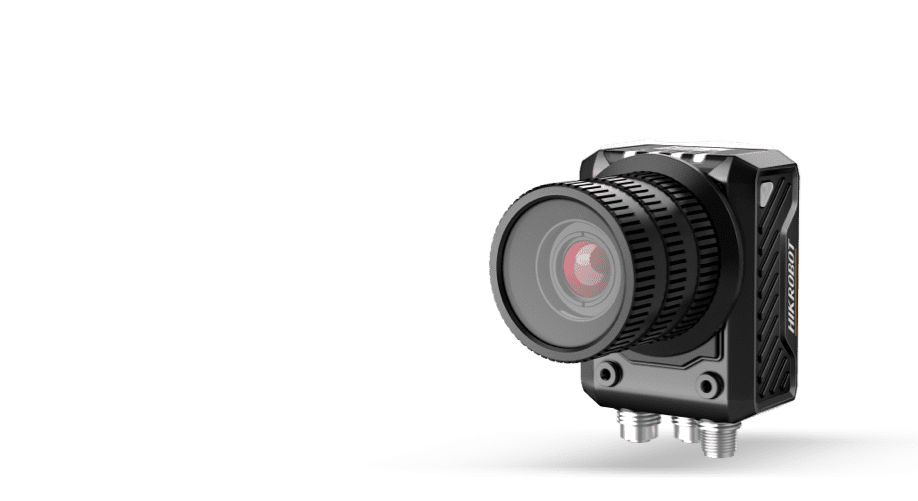

SC6050M- Smart Camera with 2560 × 2048 resolution, Mono, and 40 fps is the perfect choice for your automation project or production line.

SC3050XM Smart Camera with 2432 × 2048 resolution, Mono, and 40 fps is the perfect choice for your automation project or production line.

Target Mark, 50 mm, auto-ID, mounting holes, adhesive pads, set of 12 pcs

Resolution : 5Mp
Number of pixels (H x V) : 2368 × 1670
Frame Rate: 30fps
Shutter Type: Global Shutter
Color: Mono

Smart vision sensor, 5MP, White LED, 12mm lens.
Includes a IO&Power Cable×1(17pin to OPEN)

Key Feature

Adopts embedded hardware platform to realize high-speed image processing.

Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.

Supports RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP and other communication modes.

Adopts multiple IO interfaces for input and output signals.

Supports viewing the device's status in real time via 360° visual indicator, convenient for debugging and maintenance.

Rotatable cable tail design, suitable for narrow space.

Adopts polarized, diffused, and full-transparent multiple optical lighting with good environmental adaptability.

IP67 protection without fear of harsh industrial application environments.

Specifications
Recommended working distance: 1600–3500 mm
Near FOV: 1280 × 1280 mm @ 1.6 m
Far FOV: 3000 × 2800 mm @ 3.5 m
Depth map resolution: 2448 × 2040
RGB resolution: 4000 × 3000/2000 × 1500
Point Z-value repeatability (σ)
[1]: 0.2 mm @ 3.0 m
Measurement accuracy (VDI/VDE)[2]: 1.0 mm @ 3.0 m
Typical capture time: 0.6-1.1 s
Dimensions: 942 × 88 × 116 mm
Baseline: 800 mm
Weight: 4.5 kg
Operating temperature: -10-45°C
Communication interface: Gigabit Ethernet
Light source: Red Laser (638 nm, Class 2)
Input: 24 V DC, 3.75 A
Safety and EMC: CE/FCC/VCCI/KC/ISED/NRTL
IP rating: IP65
Cooling: Passive
Mean Time Between Failures (MTBF): ≥ 40,000 hours

CMOS, global shutter, PYTHON5000, 4.8 µm × 4.8 µm, 2592 × 2048, 22 fps @2592 × 2048, Mono, Gigabit Ethernet, compatible with Fast Ethernet, C-Mount, 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7"), , CE-RoHS;FCC-SDoC;CE-EMC;WEEE;REACH SVHC;KC, MV-CS050-20GM(O-STD)V2.0, 306301724

CMOS, rolling shutter, HK, 2.2 μm × 2.2 μm, 2592 × 1944, 48.2 fps @2592 × 1944 Mono 8, Mono, USB3.0, compatible with USB2.0, C-mount, 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2"), , CE-RoHS;CE-EMC;KC, ,

Light Controller For Thread Lighting LE201-500W48-2. Check the specification document below or contact us for more info.

Line Lighting LTDS-H-1500-W model with 1 LED Rows, Additional options cable length, and 1500*17 emitting area. Check the specification document below or contact us for more info.

Line Lighting LTDS-H-500-W model with 1 LED Rows, Additional options cable length, and 500*17 emitting area. Check the specification document below or contact us for more info.

Flat Lighting LBES-H-450-320 model with NA LED Rows, 1m cable length, and 450*320 emitting area. Check the specification document below or contact us for more info.
