Robotter

Nachi MZ50F er en af de nyeste tilføjelser til MZ-serien. Med en bæreevne på op til 50 kg, en rækkevidde på 2102 mm og en beskyttelsesgrad på IP67, er den et alsidigt valg til mellem- til tungt arbejde inden for håndtering og palletering. Standardtilbuddet inkluderer en robotovervågningsenhed og fieldbus ProfiNet.

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 01
Two fixed tables for holding clamping tools

Nachi robotten MZ01 er en kompakt industrirobot med 6 akser, rækkevidde på 350mm, og en nyttelast på 1 kg. Den er ideel for materialehåndtering og samling af små dele, såvel som inspection og andre opgaver, der kræver en hurtig, let hånd.

Cloud Notify - Lifetime license for one device

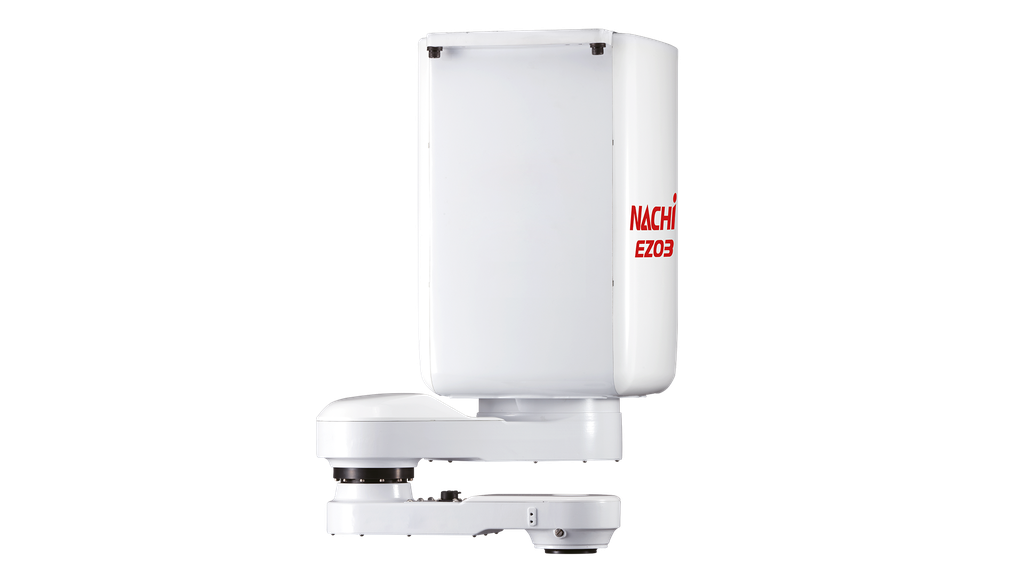

EZ03V4-02-4515
Maks. nå: 450 mm
Nyttelast: 3 kg (2 kg vurderet)
Akser: 4
Gentagelighed: ±0,014 mm
Beskyttelsesvurderingsorgan: IP20
Beskyttelsesklasse overarm: IP20
Bedømmelse af rent værelse: –
Hult håndled eller arm: Hult håndled
Montering: Omvendt
Vægt: 42 kg

NACHI - EZ03V4-02-4525
Controller type : CFDs
Reach: R: 450mm
Payload: 3kg
Axes: 4
Repeatability: ±0.014mm
Protection Rating Body: IP20
Protection Rating Upper Arm: IP20
Clean Room Rating: –
Hollow Wrist or Arm: Hollow Wrist
Mounting: Inverted
Weight: 42kg
Build in Valves : 3
I/O board : 32 in/out
Teach pendant cable : 4m
CN10 cable : 5.5m
Wire Harness : 5m

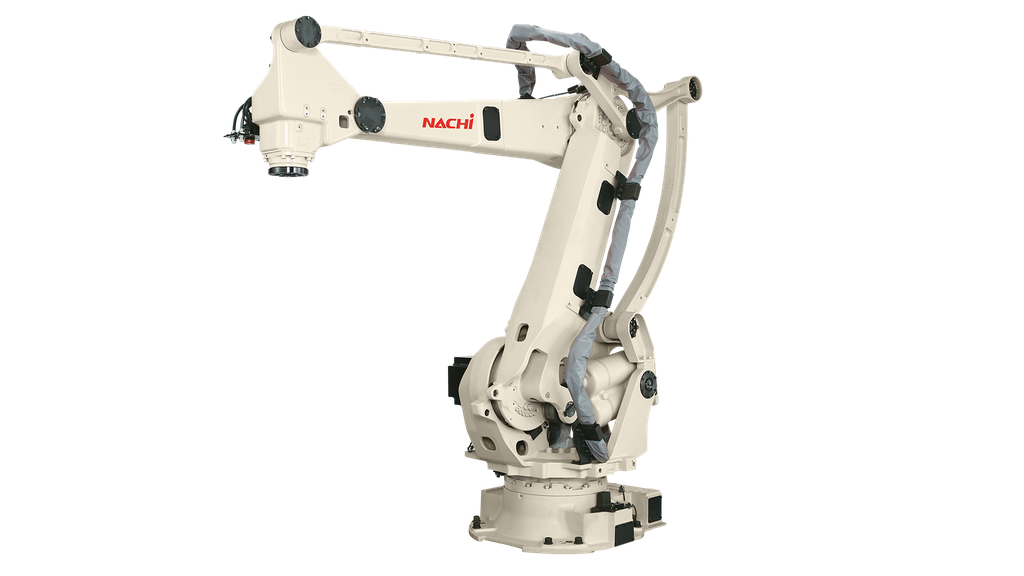

LP130F er den perfekte palleteringsrobot til det hurtige produktionslayout.

Med en nyttelast op til 130kg og en rækkevidde på 3210mm kan palleteringsrobotten stable kasser eller sække præcist.

Helt op til 1500 kasser i timen ved 130kg, og 1800 kasser i timen ved 60kg, kan LP130F stable og palletere.

LP-serien kan løfte mange forskellige former og størrelser, og der er mulighed for at påsætte palleteringshænder for småt eller stort læs.

Det kompakte design reducerer forstyrrelser inden for arbejdsarealet, hvilket styrker fleksibiliteten i den kompakte produktion.

Både robottens arm og krop er støvsikker og sprøjtetæt (IP54).

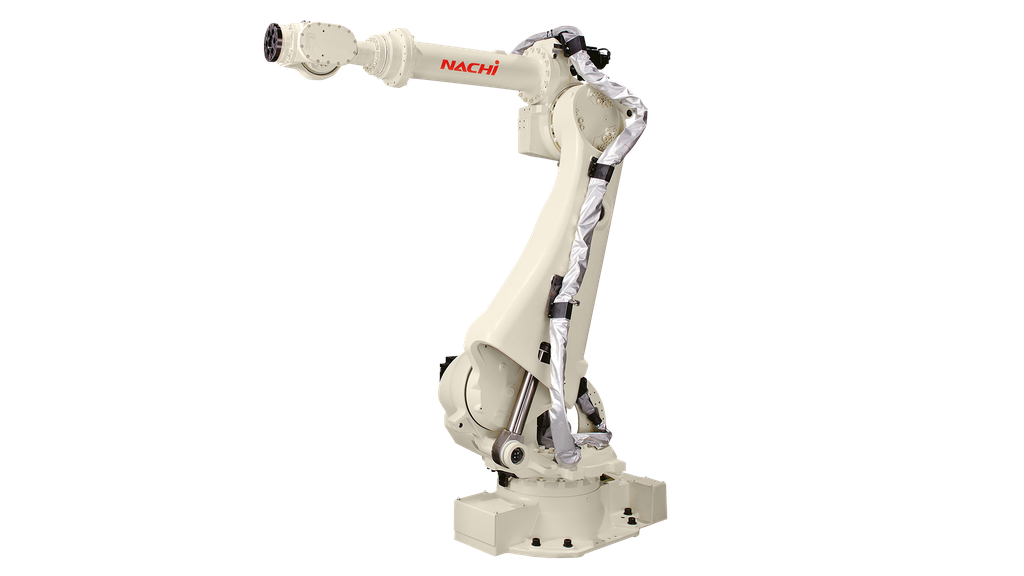

Request a quote on the SRA250

Ligesom sine mindre søskende er MC350 perfekt til materialehåndtering, samling, palletering og afgratning af metal m.v. Med sin nyttelast op til 350kg og en rækkevidde på 2771mm har tungløftsrobotten stort potentiale i en variation af applikationer og produktioner. De 6 akser gør den i stand til at nå ind i det kompakte produktionslayout. Med en IP54-certificering er MC350 både støvsikker og sprøjtetæt.

ROKAE SR4 Collaborative robot with payload 18 kg and max reach of 919 mm. IP54 for great protection in the production.

FD11 Motorkit with 750w

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 02
Motorized reversing 180° cycle table for holding clamping tools

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 03
2x horizontal rotary positioners in different payload classes (250, 500 and 1.000kg) incl. counter bearing unit

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 04
2-station horizontal rotary positioner in different payload classes (250, 500 and 1.000kg) and different center distances

All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 05
2x 2-axis turn/tilt positioner in different payload classes (250, 500 and 1.000kg)

The OTC EASY ARC 01.01 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P402: Air-cooled
OTC robot torch, type RT-3500H+SSV: Air-cooled
OTC weld assy, type FD19-B6-RT35H-P4
Stable working table (work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.02 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P502L: Water-cooled
OTC robot torch, type RTW-5000H+SSV: Water-cooled
OTC weld assy, type FD19-B6-RTW50H-P5L
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.03 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P402: air-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
OTC robot torch, type RT-3500H+SSV: air-cooled
OTC weld assy, type FD19-B6-RT35H-P4
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 01.04 model package consists of:

OTC arc robot module, type FD19-B6
OTC power source, type WB-P502L: Water-cooled
OTC 1-axes modikit (build in FD-19): Incl. Synchromotion
OTC robot torch, type RTW-5000H+SSV: Water-cooled
OTC weld assy, type FD19-B6-RTW50H-P5L
OTC headstock, type A2PB-252E: 250 kg payload
Stable working table (work area: 800x600mm)
OTC robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.01 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: Water-cooled
TIG robot torch, type WH400-W0+CAT2-XL: Water-cooled
TIG weld accessories: Without filler
Stable working table ( work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches

The OTC EASY ARC 02.02 model package consists of:

OTC arc robot module, type FD19-V8
OTC power source, type WB-A350P: water-cooled
TIG robot torch, type WH400PP-W0+CAT2-XL: water-cooled
TIG weld accessories: With filler
Stable working table (work area: 800x600mm)
Robot monitoring unit, type RMU
Housing safeguards and safety switches
