CR-C Series | 6 Axis
Rokae Collaborative Robots


Take a look at the new revolutionary 6-axis collaborative robots from the Rokae CR-C Series. The controller in the base of the CR series is moved out of the body to form an independent control cabinet with IP54 protection level, which reduces the installation size of the base and improves the protection level of the body to IP67, which can adapt to more stringent application scenarios.

The independent control cabinet provides richer IO resources and more flexible extensibility. Its built-in independent safety controller, TUV certified, functional safety meets ISO 13849-1:2015 standard, up to PL d/Cat. 3 level.

The newly upgraded xMate CR-C series of flexible cobots further broadens the application scenarios with the characteristics of safer, more flexible and easier to use.

Data​​s​​​​he​​​​​​et​​ Contact us!​

7

Max Payload (kg):

988

Max Reach (mm)

6

Axis (Degrees of Freedom)


Weight (Body) (kg)

IP Rating

Power Supply

Repeatability

Operating Temp (°C)

Force Sensing (Tool Flange)

Maximum Speed at Tool End

Adjustable Range of Cartesian Stiffness

Relative Accuracy of Force Control

Mounting Method

*See the Datasheet for motion parameters, controller cabinet specifications and more.

Rokae CR07-C Cobot from the CR Series.

25

IP67

48VDC

±0,02  mm

0°C ~ 50°C

Force x-y-z  /  Torque x-y-z

≤3.2 m/s

0~3000 N/m  /  0~300 Nm/rad

0.5 N  /  0.1. Nm

Mounting at any angle


Extreme Safety

Superior Performance

Flexible Deployment

Excellent Reliability

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Full Empowerment and Integration

The reliable partner to equipment manufactuerers and integrators that accommodates extensive industry plug-ins and secondary development.

Sound ecosystem that fully empowers industry applications.

Force control process kit, pallet process kit, and laser welding process kit.

We are making it easy to you to integrate your solution for your needs with Rokae Collaborative robots.

Get a Quote

12

Max Payload (kg):

1434

Max Reach (mm)

6

Axis (Degrees of Freedom)


Weight (Body) (kg)

IP Rating

Power Supply

Repeatability

Operating Temp (°C)

Force Sensing (Tool Flange)

Maximum Speed at Tool End

Adjustable Range of Cartesian Stiffness

Relative Accuracy of Force Control

Mounting Method

*See the Datasheet for motion parameters, controller cabinet specifications and more.

Rokae CR12-C Cobot from the CR Series.

41

IP67

90-264VAC, 47-63HZ/48VDC

±0.03  mm

0°C ~ 50°C

Force x-y-z  /  Torque x-y-z

≤3.0 m/s

0~3000 N/m  /  0~300 Nm/rad

0.5 N  /  0.1. Nm

Mounting at any angle


Extreme Safety

Superior Performance

Flexible Deployment

Excellent Reliability

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Full Empowerment and Integration

The reliable partner to equipment manufactuerers and integrators that accommodates extensive industry plug-ins and secondary development.

Sound ecosystem that fully empowers industry applications.

Force control process kit, pallet process kit, and laser welding process kit.

We are making it easy to you to integrate your solution for your needs with Rokae Collaborative robots.

Get a Quote

18

Max Payload (kg):

1062

Max Reach (mm)

6

Axis (Degrees of Freedom)


Weight (body) (kg)

IP Rating

Power Supply

Repeatability

Operating Temp (°C)

Force Sensing (Tool Flange)

Maximum Speed at Tool End

Adjustable Range of Cartesian Stiffness

Relative Accuracy of Force Control

Mounting Method

*See the Datasheet for motion parameters, controller cabinet specifications and more.

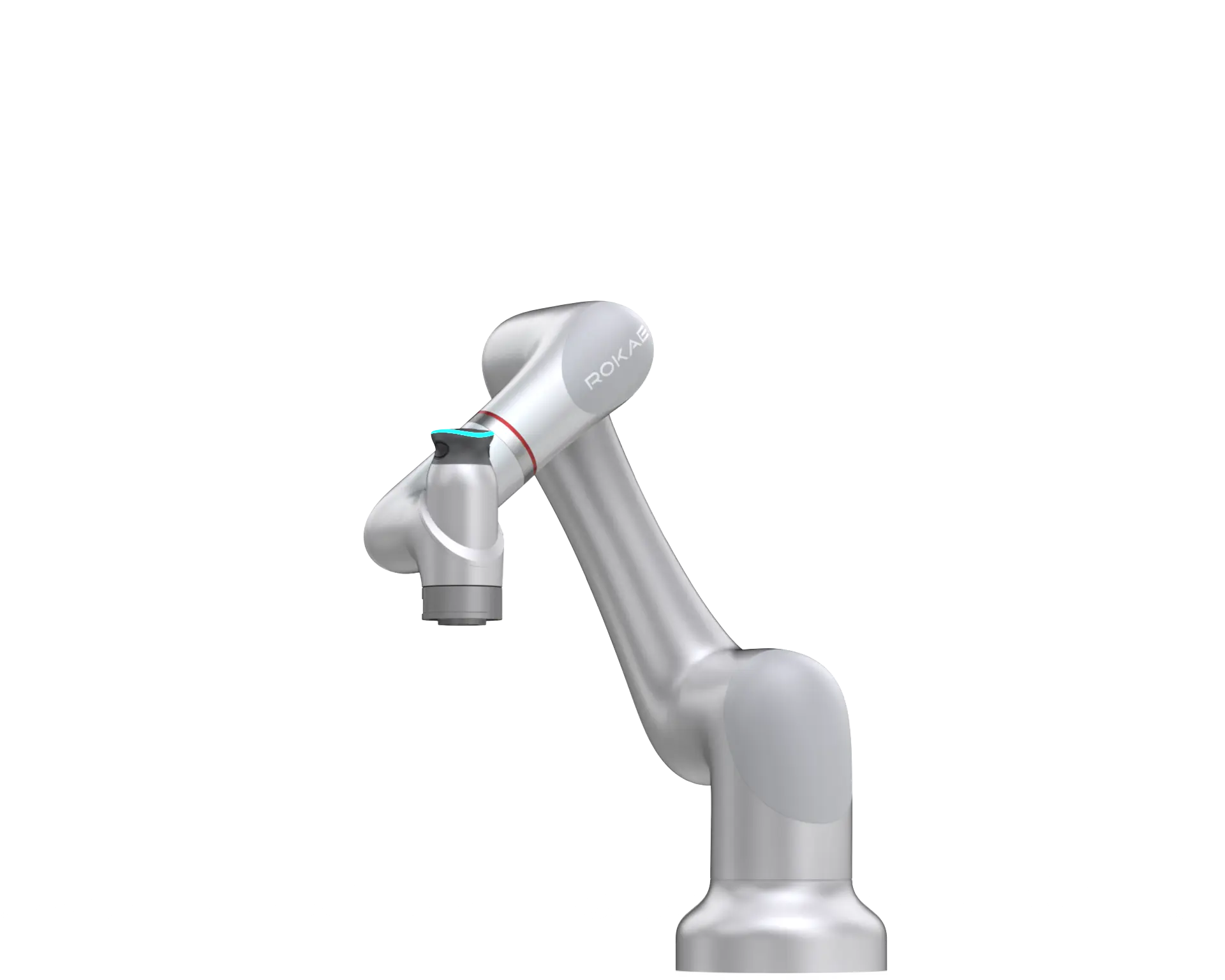

Rokae CR18-C Cobot from the CR Series.

38

IP67

90-264VAC, 47-63HZ/48VDC

±0.03  mm

0°C ~ 50°C

Force x-y-z  /  Torque x-y-z

≤3.0 m/s

0~3000 N/m  /  0~300 Nm/rad

0.5 N  /  0.1. Nm

Mounting at any angle


Extreme Safety

Superior Performance

Flexible Deployment

Excellent Reliability

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Full Empowerment and Integration

The reliable partner to equipment manufactuerers and integrators that accommodates extensive industry plug-ins and secondary development.

Sound ecosystem that fully empowers industry applications.

Force control process kit, pallet process kit, and laser welding process kit.

We are making it easy to you to integrate your solution for your needs with Rokae Collaborative robots.

Get a Quote

20

Max Payload (kg):

1798

Max Reach (mm)

6

Axis (Degrees of Freedom)


Weight (body) (kg)

IP Rating

Power Supply

Repeatability

Operating Temp (°C)

Force Sensing (Tool Flange)

Maximum Speed at Tool End

Adjustable Range of Cartesian
Stiffness

Relative Accuracy of Force Control

Mounting Method

*See the Datasheet for motion parameters, controller cabinet specifications and more.

Rokae CR20-C Cobot from the CR Series.

71

IP67

180V ~ 264VAC, 47-63HZ/48VDC

±0,02  mm

0°C ~ 50°C

Force x-y-z  /  Torque x-y-z

≤3.5 m/s

0~3000 N/m  /  0~300 Nm/rad


0.5 N  /  0.1. Nm

Mounting at any angle


Extreme Safety

Superior Performance

Flexible Deployment

Excellent Reliability

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Full Empowerment and Integration

The reliable partner to equipment manufactuerers and integrators that accommodates extensive industry plug-ins and secondary development.

Sound ecosystem that fully empowers industry applications.

Force control process kit, pallet process kit, and laser welding process kit.

We are making it easy to you to integrate your solution for your needs with Rokae Collaborative robots.

Get a Quote

12

Lifting Height (mm)

285

Weight (kg)

1500

Rated Load (kg)

1265

Rotation Diameter (mm)

Navigation

QR Code / Visual Slam / Laser Slam

8

Run time (h)


Dimension L*W*H (mm)

Rated Speed (m/s)

Max. Rotation Speed (°/s)

Position Accuracy (mm)

Charging Time (h)

​Driving Mode

1180*860*265

1,5

120

±10

≤2

Differential Drive

Multiple Certifications

Full Range Safety Protections

Great
Flexibility

Wide Application

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

High Performance, Safety, Efficient

Stay on top of your warehouse. Keep the productivity high with autonomous mobile vehicles, even if your navigation needs are complex with Hikrobot mobile robots.

Keep costs down by embracing a green AMR solution and prioritizing employee skills in value positions.

Get a Quote

18

Lifting Height (mm)

285

Weight (kg)

1500

Rated Load (kg)

1265

Rotation Diameter (mm)

Navigation

QR Code / Visual Slam / Laser Slam

8

Run time (h)


Dimension L*W*H (mm)

Rated Speed (m/s)

Max. Rotation Speed (°/s)

Position Accuracy (mm)

Charging Time (h)

​Driving Mode

1180*860*265

1,5

120

±10

≤2

Differential Drive

Multiple Certifications

Full Range Safety Protections

Great
Flexibility

Wide Application

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

High Performance, Safety, Efficient

Stay on top of your warehouse. Keep the productivity high with autonomous mobile vehicles, even if your navigation needs are complex with Hikrobot mobile robots.

Keep costs down by embracing a green AMR solution and prioritizing employee skills in value positions.

Get a Quote

20

Lifting Height (mm)

285

Weight (kg)

1500

Rated Load (kg)

1265

Rotation Diameter (mm)

Navigation

QR Code / Visual Slam / Laser Slam

8

Run time (h)


Dimension L*W*H (mm)

Rated Speed (m/s)

Max. Rotation Speed (°/s)

Position Accuracy (mm)

Charging Time (h)

​Driving Mode

1180*860*265

1,5

120

±10

≤2

Differential Drive

Multiple Certifications

Full Range Safety Protections

Great
Flexibility

Wide Application

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

High Performance, Safety, Efficient

Stay on top of your warehouse. Keep the productivity high with autonomous mobile vehicles, even if your navigation needs are complex with Hikrobot mobile robots.

Keep costs down by embracing a green AMR solution and prioritizing employee skills in value positions.

Get a Quote

Start with the customer – find out what they want and give it to them.


Force Torque Sensor for any precise application


The incredible precise force torque sensor in the Rokae cobot series makes it a brilliant companion in the production line. Applications that require a delicate, friendly touch can easily be handled by the Rokae collaborative robots.

How does it work? By converting an input mechanical force such as load, weight, tension, compression or pressure into another physical variable into an electrical output signal that can be measured, converted and standardized, the robot can "feel" the force it exerts on the object. As the force applied to the force sensor increases, the electrical signal changes proportionally.

Wanna test if our cobot can handle your delicate production needs?

Book a demo! The CR-C Series




Rokae CR Series Collaborative robot


Invite us to your location!

Let's talk about your automation needs.


Book a robot visit



Ready to ask a question?

We answer within 24 hours on week days!

Ask a question
